Vacuum SMT Reflow Oven KC-Z104

PCB: 400mm*350mm
10 heating zones
Weight APPROX:2500KG
Dimension L6025×1350×1500mm
Product description: Vacuum SMT Reflow Oven KC-Z104,China factory manufacturer directly. PCB: 400mm*350mm, 10 heating zones, Weight APPROX:2500KG, Dimension L6025×1350×1500mm
INQUIRY

Specifications:

The Vacuum Reflow Oven Soldering theory is make a vacuum environment at the soldering area, this makes the solder nearly no void after soldering.

Features:

Model	KC-Z104
Weight	APPROX:2500KG
Dimension	L6025×1350×1500mm
Heating zone qty.	Top10/ bottom 10
Cooling zone qty.	Top 4/ bottom 4
Cooling way	Forced water cooling
Rectifying plate structure	Carbon heating plate
Exhausting requirement	10㎡/min×2
Control system
Power supply	3P 380V 50/60HZ
Total power	54KW
Startup power	38KW
Consumption power	12KW
Speed adjusting	3 sections with 3 inverters
Warm up time	Apprx.20minute
Temp. control range	Room temp.～300℃ (adjustable)
Temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Data store	Can store unlimited setting parameters
Abnormal alarm	High temp., low temp., conveying, vacuum pressure, nitrogen, air volume, PCB entering abnormal
Conveying system
Rail structure	Separately controlled in 3 sections
PCB max. width	400mm*350mm
Conveyor height	900±200MM
Conveying way	Chain
Vacuum system
Vacuum min. pressure	－0 .1MP
Vacuum pump power	3KW rotary vane wet
Vacuum pressure relief time	≦10S
Vacuuming time	10-300S
Vacuum chamber open way	Electric
Vacuum chamber size	500400300mm
Production beat	≧20S
Nitrogen system (option)
Nitrogen period	The whole production time
Nitrogen concentration	500-1000PPM
Nitrogen consumption	15-30m³

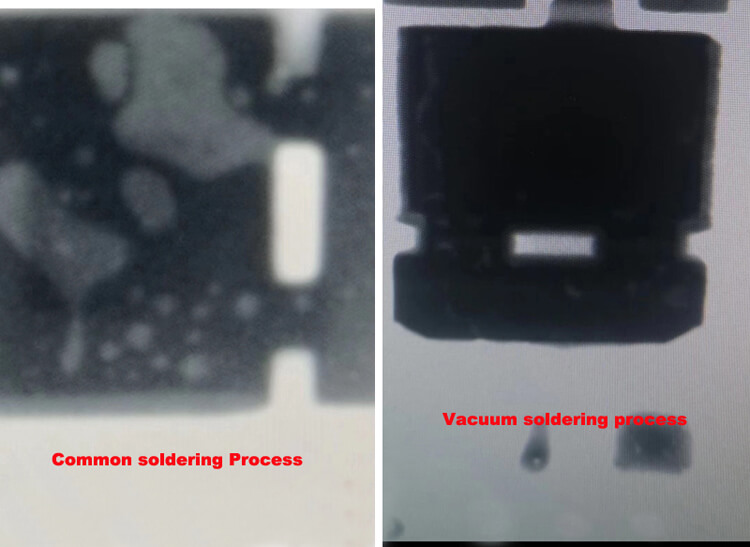

After use our Vacuum reflow oven, Customer's high end PCB void rate is less than 1%, Customer are very satisfied on the effect.
