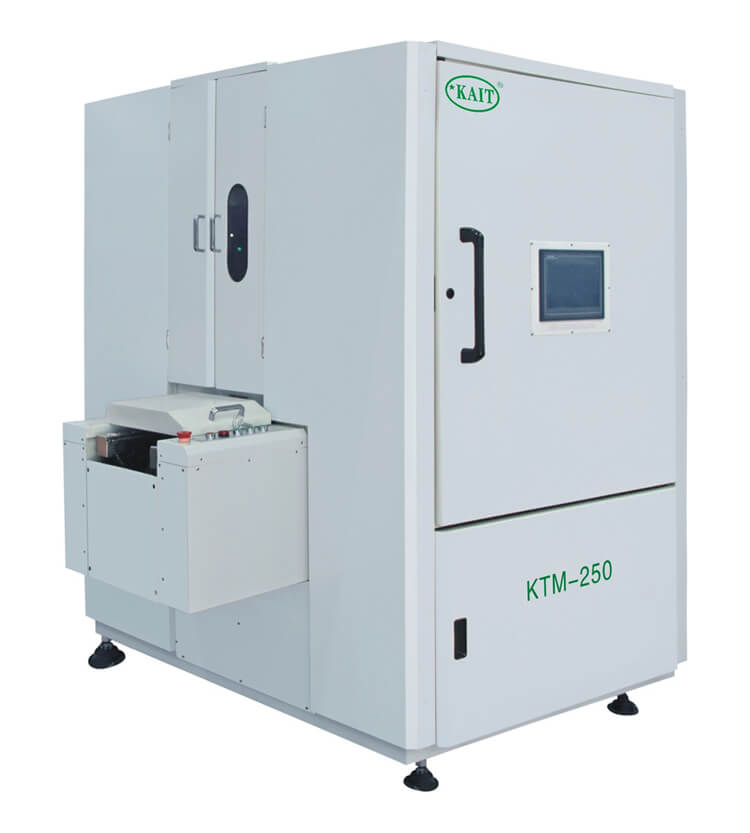

Vertical Curing Oven KTM-250

Heating zone: Top 2, bottom 2
PCB width: 100*100-250*500mm
Weight 1500KG
Dimension 2600*1570*2025mm
Product description: Vertical Curing Oven KTM-250 for UV glue red glue Curing, China factory manufacturer directly. Heating zone: Top 2, bottom 2, PCB width: 100*100-250*500mm, Weight 1500KG, Dimension 2600*1570*2025mm T
INQUIRY

Specifications:

This one machine Production ability equals to 30 meter UV glue Red glue curing oven.

Features:

General spec.	Dimension	260015702025mm（LWH）
	Weight	1500KG
	Heating zone qty	Top 2, bottom 2
	Direction	Left to right, up to bottom
	Power	3P 380V，50/60HZ
	Total power	26.4KW
	Running power	18KW
Conveyor	PCB width	100100-250500mm
	PCB thickness	25mm，pallet:545mm
	PCB bending rate	Up& bottom ≤1.0mm
	Conveying height	900±50mm
	Gap height	≥50.8mm
	Stocking PCB qty	Top:32 layers，bottom:32 layers
	Conveying method	Support strip
	Distance	25.4mm
	Conveying speed	0-2000mm/min adjustable
	Bearable weight	6KG/layer
Property	Heating modular	4pcs
	Heating time	15min
	Oven surface temp.	≤65°C（under room temp）
	Controllable temp	Indoor 200°C
	Heating compensation temp	±3°C
	Control accuracy	±3°C
Software	Control method	Touch screen+ PLC / industrial computer+ PLC
	Data monitor	Computer data record and enquiry
	Authorization	Can be set
Safety	In accord to national standard	Yes
	Abnormal temp. stop	Signal of PCB enter and exit, trigger device
	Heat radiation system	Yes
	Protection device	Safe guardrail、emergency stop、safe marks
	Safe device	Open the safety door to alarm and automatically shift to temp. dropping mode
	Over temp. protection device	Heating stops, PCBs inside come out
	Fire-proof level	B1/A
Service	Warranty	2 years
	Scene training	Yes
	Technique support	8 hours
	Intelligent terminal	Available
	Software upgrade	Free of charge
