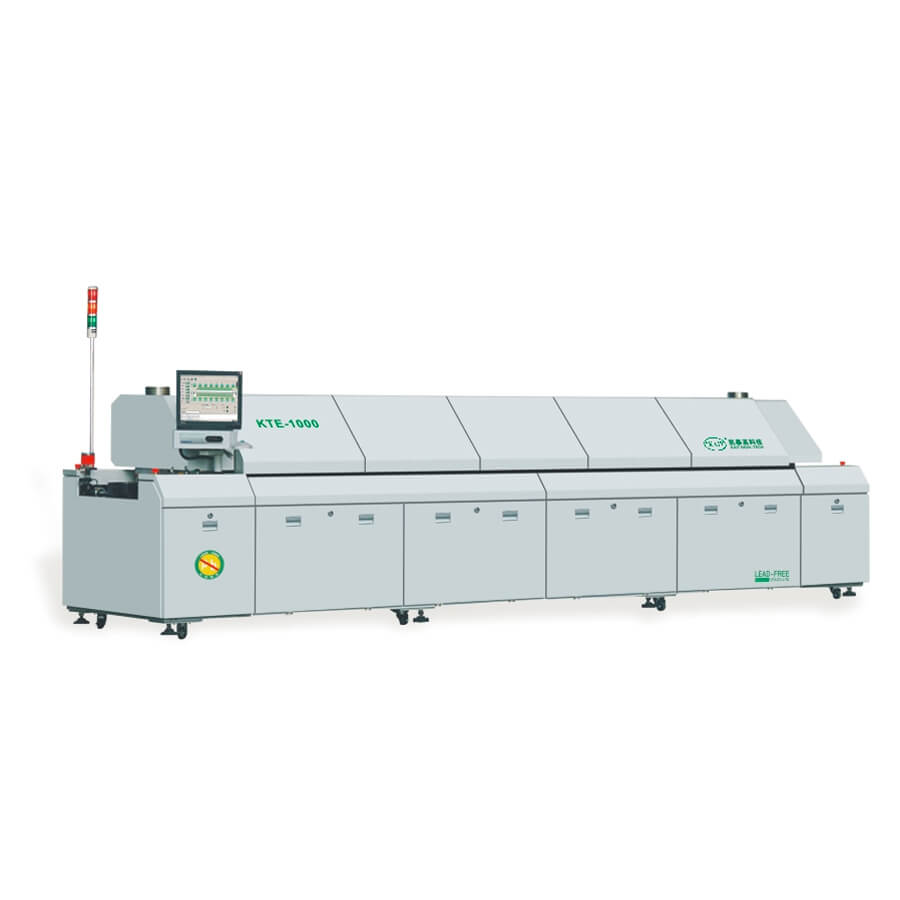

10 Zones Economical SMT Reflow Oven KTE-1000
Specifications:
Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
Model
KTE-1000
Control
Industrial computer
Heating zones quan.
Top 10,bottom 10
Cooling zones quan.
Top 2
Heating zone length
3892mm
Current plate structure
Galvanized plate
Weigth
APPROX:2615KG
Dimension
6135*1360*1490mm
Exhaust capacity
10㎡/min×2
Color
Grey
Control system
Electricity supply
3P 380V/220V 50/60HZ
Temp. control range
Room temp.～300℃
Total power
80KW
Temp. control accuracy
±1℃（statical state）
Start power
36KW
Temp. control method
PID +SSR drive
Consumption power
12KW
PCB temperature deviation
±1.5℃
Speed control
Inverter adjust
Data save
All profiles can be saved
Warm up time
Apprx.30minute
Abnormal alarm
High, low temp. alarm
Conveying system
Rail structure
2 Sectional structure
Rail fixed method
Front fix
Chainstructure
Stuck-free type
Conveying height
900±20mm
PCB Max. width
50-400mm
Conveying method
Mesh+ chain
Component height
Top/bottom 25mm
Conveying speed
300-1500mm
Conveying direction
Left to right
Lubrication
Automatically or manually
Cooling system
Cooling method
Forced air cooling
Heating features
Heating zones
Top 10,bottom 10（3892mm）can meet the need of the peak lead-free technique.
Cooling zones
After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time
From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence
Warm up from two side, save the power and time
Profile transfer time
＜15min
Heating zone temp. control accuracy
±1℃
PCB temp. deviation
±1.5℃
Empty→ full load heat balance respond time
≤20 s
