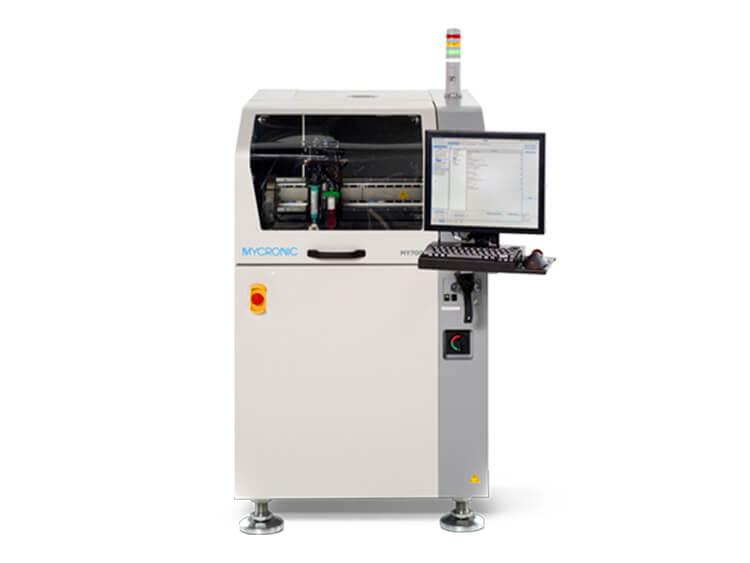

Solder Paste Jet Printer Dispenser Mycronic MY700JP

Jet frequency: 720,000DPH
Single dot accuracy: ± 40μm
weight: 1,600kg
Dimension: 843 x 1,550 mm
Product description: Solder Paste Jet Printer Dispenser Mycronic MY700JP, Jet frequency: 720,000DPH, Single dot accuracy: ± 40μm, weight: 1,600kg, Dimension: 843 x 1,550 mm
INQUIRY

Specifications:

Solder Paste Jet Printer Dispenser Mycronic MY700JP

High quality and yield: Operator-independent production and excellent volume repeatability.
Unrivalled flexibility:100% software-driven, enabling quick changeovers.
Enables lean production: Reduce costs and manual work.

Millions of high-precision dots.
Now with twice the versatility.
The MY700 Jet Printer makes it possible to handle the most challenging boards and components with micrometer accuracy, maximum speed and perfect quality solder joints. The smallest and largest dots are now possible to combine with higher throughput than ever before, thanks to dual heads for continuous jetting of nanoliter and large deposits.
Perfect precision with ultimate design freedom
As boards and components become smaller, smarter and more complex, jet printing stands out as the most efficient solution for the modern electronics industry. Fully software-driven and with complete solder paste volume control, the MY700JP is the optimal way to ensure perfect quality solder joints at high speed – even in the industry’s most challenging applications. From pin-in-paste to package-on-package, flexible substrates and board cavities, even stepped stencils have begun to reach their limits.
With the MY700JP you can handle all these jobs and more with total control of solder paste deposit size, volume, shape and position.
Double up on speed, versatility and precision
The MY700 Jet Printer ensures excellent volume repeatability and solder joint quality to reduce rework. The dual head option also make it possible to combine fi ne-pitch jet printing for the smallest BGAs and 01005 components on the same board as larger-volume deposits for QFNs and connectors. The result is a substantial increase in productivity in a wide range of applications.

Easy setup and error-proof automation
State-of-the-art software and vision systems combine to make the MY700JP one of the market’s most error-free solutions. Simply set up and generate a new job offline from CAD or Gerber data in minutes. Depend on fast, accurate scanning and tracing of the smallest fiducial marks and bar codes. And rely on automatic board warpage compensation, stretch compensation and advanced height measurement to scan the entire boards for cavities, plateaus and warpage. Pre-set parameters for all types of challenging applications will then optimize and jet deposit volumes at a rate of more than one million dots per hour, giving you the highest possible quality and yield for the industry’s most demanding boards and components.

Complete design freedom
100% software-controlled, the non-contact ejectors can be instantly adjusted to accommodate board stretch, preferred dot volume and design changes.

MACHINE PLATFORM
Jet frequency	720,000DPH/1,080,000DPH(1)
Gantry type	X /Y linear motor
Servo	Advanced DSP motion control
Gantry acceleration, max	3g (30m/s2)
Active field of view	16 x 16 mm
PRODUCTION PERFORMANCE
Single dot repeatability, 3σ (X,Y)(2)	± 35μm
Single dot accuracy, Cpk = 1.0 (X,Y)(2)	± 40μm
CAPABILITY	MY700JX
	MY700JP	MY700JD
Media	Solder paste	SMA and other adhesives
Applicator type	Piezo ejector	Pneumatic valve/Piezo valv
Droplet size	1 .9 –35nl(3)	5 –1,000nl
Min dot diameter	210μm(3)	200μm
Min dot diameter	210μm(3)	(this is material dependent)
Nozzle sizes	N/A	50 – 400μm
Syringe size	30 cc	5, 10, 30 cc
OPTIONAL FEATURES	MY700JX
	MY700JP	MY700JD
Hermes communication	•	•
2D inspect and repair — paste present detection	•
High speed — 1,080,000dph	•
SMD adhesive — jet printing of SMA	•	•
Fine pitch — jet printing for fine pitch components	•
Shared databases	•	•
PCB ID — board traceability	•	•
Serial start — automatic start	•	•
Dual layout	•	•
Dual heads	•	•
Board indexing	•	•
Cleaning station for ejector	•
Cleaning station for applicator		•
Internal buffering 200 mm	•	•
Internal buffering 250 mm	•	•
Extended Internal Conveyor — For boards up to 915 mm in length	•	•
Foot SMEMA — spacer for SMEMA height	•	•
Vacuum clamping	•	•
Fiducial recognition on-the-fly	•	•
Stop pin	•	•
Weigh station	•	•
AI2 — active inspection interface, repair loop	•
E-mapping — external information; “bad board” and “fiducial”	•	•
Board thickness range(4)	0.4 – 6 .0 (0.016”– 0.24”)
Overboard clearance	35 mm (1 3/8”)
Underboard clearance	25 mm (1”)
Board edge clearance, top	3 mm (1/8”)
Board edge clearance, bottom	4 mm (5/32”)
Board warp / bow / twist, max(5)	± 2 mm (± 0.08”)
Board weight, max	5 kg (11lbs)
Board transport height	880 – 930 mm (34 .6”–36 .6”)
Board transport height (SMEMA)	930 – 975 mm (36 .6”–38 .4”)
Transport direction	R->L, L->R, R->R, L->L, Pass
Lane configuration	Dual lane with optional dual layout
Machine weight	1,600kg (3,530lbs)
System Footprint	843 x 1,550 mm
Power requirements	4kW (peak)
Power consumption	3kVA
Voltage	3 phase AC 200/ 220/ 240/ 380/ 400/ 420V ± 10 %
Air pressure	5 –10 bar (70 –140PSI)(9)
Air quality	ISO 8573-1 4 4 4
Air consumption, max	250 l/min (9CFM)
Ambient temperature	+ 18°C to + 32°C, 30 – 80 % RH
Clean room	Fulfills class 10,000
Altitude	Lower than 1,000 m above sea level
Sound level	68dB(A)
