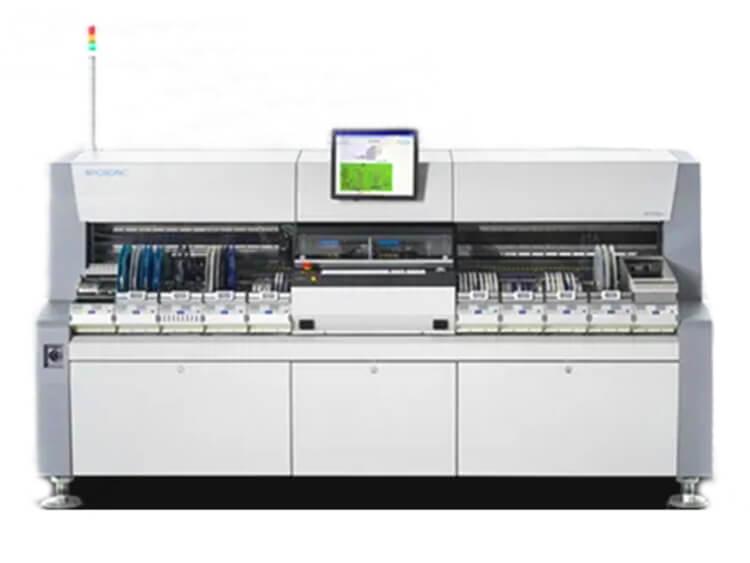

SMT Pick and Place Machine Mycronic MY300DX

SMT Pick and Place Machine Mycronic MY300DX

  • Maximum board size: 460 x 510 mm
  • Speed: 40000CPH
  • Weight: 1 600 kg
  • Dimension: 2809x1632x1438mm
  • Product description: SMT Pick and Place Machine Mycronic MY300DX, Maximum board size: 460 x 510 mm, Speed: 40000CPH, Weight: 1 600 kg, Dimension: 2809x1632x1438mm

SMT Pick and Place Machine Mycronic MY300DX


SMT Pick and Place Machine Mycronic MY300DX

High-speed: High-speed all-in-one mounter, up to 40,000 CPH
High accuracy: High accuracy and repeatability for fine pitch placement
Agilis feeder technology: Agilis feeder technology featuring up to 224 feeder positions

Master complexity. Grow your business.
Populate more boards. Not more floor space.
Get more jobs done in less space with Mycronic's pick-and-place machines. Thanks to the machines’ compact design, up to 224 intelligent feeders can be accommodated within a surprisingly small footprint.
Switch effortlessly from full volume to batch size one. Handle a wider range of components with uncompromising production quality, total stock accuracy and complete traceability down to individual PCB serial number.
The MY300 delivers SMT pick-and-place at next level precision and flexibility in a fast, small and smart format.
Key benefits:
Up to 224 feeder positions
Top speed of 40,000 CPH
Large range of components
On-the-fly changeovers
Electrical verification of resistors, capacitors, diodes and transistors (optional)
Full traceability

The most efficient feeding system
Mycronic’s modular Agilis™ component feeding system is designed for accuracy, ease of use and convenience. It gains unrivalled flexibility from a combination of intelligent feeders and magazines for tapes and sticks.
Our unique Agilis™ feeders with no moving parts are easier and quicker to load than any other on the market. And by keeping preloaded Agilis feeders on hand, you can perform set-ups and changeovers even faster.

Since all Mycronic magazines can be replenished while the machine is running, you never have to stop production if you run out of components.

Maximum board size

460 x 510 mm

Maximum board size with ML adaptor (1)

419 x 443 mm

Minimum board size (2)

70 x 50 mm

Board thickness range (2)

0.4 – 6.0 mm

Board edge clearance top and bottom

3.2 mm (0.13)

Top side clearance (max) (3)

15 mm (0.59)

Bottom side clearance (max)(4)

32 mm (1.25)

Rated speed

40 000 CPH

Maximum board weight

4 kg (8.8 lbs)

IPC 9850 chip tact time (3)

0.103 s

IPC 9850 chip repeatability 3

30 μm, 1.8° (6) 45 μm, 1.8°

IPC 9850 chip accuracy @ Cpk = 1.33

50 μm, 2.6° (6) 75 μm, 2.6°

IPC 9850 fine pitch repeatability 3

21 μm, 0.05°

IPC 9850 fine pitch accuracy @ Cpk = 1.33

35 μm, 0.09°

Power requirements

Three phase AC 6.6 kVA (3 x 2.2 kVA)

Power consumption

1.5 kW (average)


3 x 200, 210, 220, 230, 240, 250 +/- 10%, Y or Delta

Air supply

No air required


70 dBA

Air temperature

+18 to +35¦°C (65 to 95¦°F)

Air humidity

<¦95% RH non condensing

Weight MY300DX-13

1 600 kg (3 500 lbs)

Weight MY300DX-17

2 000 kg (4 400 lbs)
