  • Solder Paste Jet Printer Dispenser Mycronic MY700JX

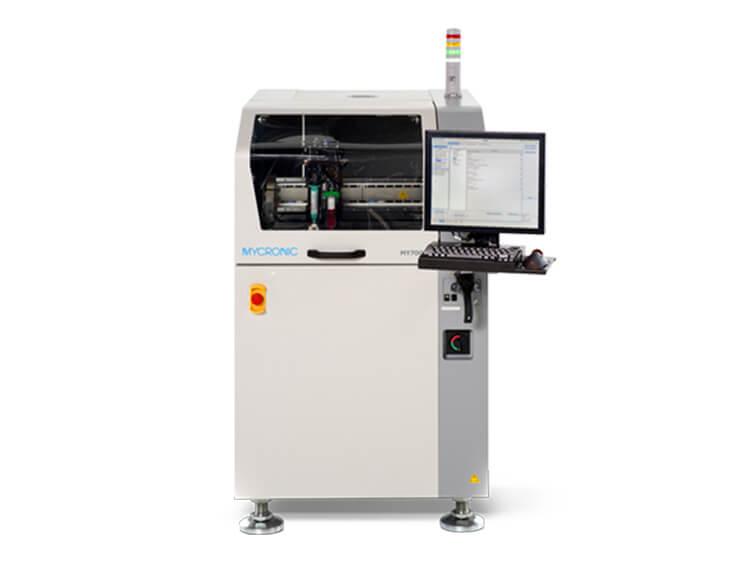

Solder Paste Jet Printer Dispenser Mycronic MY700JX

Solder Paste Jet Printer Dispenser Mycronic MY700JX

  • Jet frequency: 720,000DPH
  • Single dot accuracy: ± 40μm
  • weight: 1,600kg
  • Dimension: 843 x 1,550 mm
  • Product description: Solder Paste Jet Printer Dispenser Mycronic MY700JX, Jet frequency: 720,000DPH, Single dot accuracy: ± 40μm, weight: 1,600kg, Dimension: 843 x 1,550 mm

Solder Paste Jet Printer Dispenser Mycronic MY700JX


Solder Paste Jet Printer Dispenser Mycronic MY700JX

High quality and yield: Operator-independent production and excellent volume repeatability.
Unrivalled flexibility:100% software-driven, enabling quick changeovers.
Enables lean production: Reduce costs and manual work.

Millions of high-precision dots.
Now with twice the versatility.
The MY700 Jet Printer makes it possible to handle the most challenging boards and components with micrometer accuracy, maximum speed and perfect quality solder joints. The smallest and largest dots are now possible to combine with higher throughput than ever before, thanks to dual heads for continuous jetting of nanoliter and large deposits.
Perfect precision with ultimate design freedom
As boards and components become smaller, smarter and more complex, jet printing stands out as the most efficient solution for the modern electronics industry. Fully software-driven and with complete solder paste volume control, the MY700JP is the optimal way to ensure perfect quality solder joints at high speed – even in the industry’s most challenging applications. From pin-in-paste to package-on-package, flexible substrates and board cavities, even stepped stencils have begun to reach their limits.
With the MY700JP you can handle all these jobs and more with total control of solder paste deposit size, volume, shape and position.
Double up on speed, versatility and precision
The MY700 Jet Printer ensures excellent volume repeatability and solder joint quality to reduce rework. The dual head option also make it possible to combine fi ne-pitch jet printing for the smallest BGAs and 01005 components on the same board as larger-volume deposits for QFNs and connectors. The result is a substantial increase in productivity in a wide range of applications.
Easy setup and error-proof automation
State-of-the-art software and vision systems combine to make the MY700JP one of the market’s most error-free solutions. Simply set up and generate a new job offline from CAD or Gerber data in minutes. Depend on fast, accurate scanning and tracing of the smallest fiducial marks and bar codes. And rely on automatic board warpage compensation, stretch compensation and advanced height measurement to scan the entire boards for cavities, plateaus and warpage. Pre-set parameters for all types of challenging applications will then optimize and jet deposit volumes at a rate of more than one million dots per hour, giving you the highest possible quality and yield for the industry’s most demanding boards and components.
Complete design freedom
100% software-controlled, the non-contact ejectors can be instantly adjusted to accommodate board stretch, preferred dot volume and design changes.


Jet frequency


Gantry type

X /Y linear motor


Advanced DSP motion control

Gantry acceleration, max

3g (30m/s2)

Active field of view

16 x 16 mm


Single dot repeatability, 3σ (X,Y)(2)

± 35μm

Single dot accuracy, Cpk = 1.0 (X,Y)(2)

± 40μm






Solder paste

SMA and other adhesives

Applicator type

Piezo ejector

Pneumatic valve/Piezo valv

Droplet size

1 .9 –35nl(3)

5 –1,000nl

Min dot diameter



(this is material dependent)

Nozzle sizes


50 – 400μm

Syringe size

30 cc

5, 10, 30 cc





Hermes communication

2D inspect and repair — paste present detection

High speed — 1,080,000dph

SMD adhesive — jet printing of SMA

Fine pitch — jet printing for fine pitch components

Shared databases

PCB ID — board traceability

Serial start — automatic start

Dual layout

Dual heads

Board indexing

Cleaning station for ejector

Cleaning station for applicator

Internal buffering 200 mm

Internal buffering 250 mm

Extended Internal Conveyor — For boards up to 915 mm in length

Foot SMEMA — spacer for SMEMA height

Vacuum clamping

Fiducial recognition on-the-fly

Stop pin

Weigh station

AI2 — active inspection interface, repair loop

E-mapping — external information; “bad board” and “fiducial”

Board thickness range(4)

0.4 – 6 .0 (0.016– 0.24)

Overboard clearance

35 mm (1 3/8)

Underboard clearance

25 mm (1)

Board edge clearance, top

3 mm (1/8)

Board edge clearance, bottom

4 mm (5/32)

Board warp / bow / twist, max(5)

± 2 mm (± 0.08)

Board weight, max

5 kg (11lbs)

Board transport height

880 – 930 mm (34 .6–36 .6)

Board transport height (SMEMA)

930 – 975 mm (36 .6–38 .4)

Transport direction

R->L, L->R, R->R, L->L, Pass

Lane configuration

Dual lane with optional dual layout

Machine weight

1,600kg (3,530lbs)

System Footprint

843 x 1,550 mm

Power requirements

4kW (peak)

Power consumption



3 phase AC 200/ 220/ 240/ 380/ 400/ 420V ± 10 %

Air pressure

5 –10 bar (70 –140PSI)(9)

Air quality

ISO 8573-1 4 4 4

Air consumption, max

250 l/min (9CFM)

Ambient temperature

+ 18°C to + 32°C, 30 – 80 % RH

Clean room

Fulfills class 10,000


Lower than 1,000 m above sea level

Sound level
