SMT PCB Turning Conveyor

SMT PCB Turning Conveyor

  • PCB: 530 x 460 mm (20.87
  • SMT PCB Turning Conveyor
  • Product description: SMT PCB Turning Conveyor, dealing with PCB:530 x 460 mm (20.87" x 18.11"), features three openings and a conveyor turntable to reorient PCBs to meet process or floorplan requirements.
  • INQUIRY

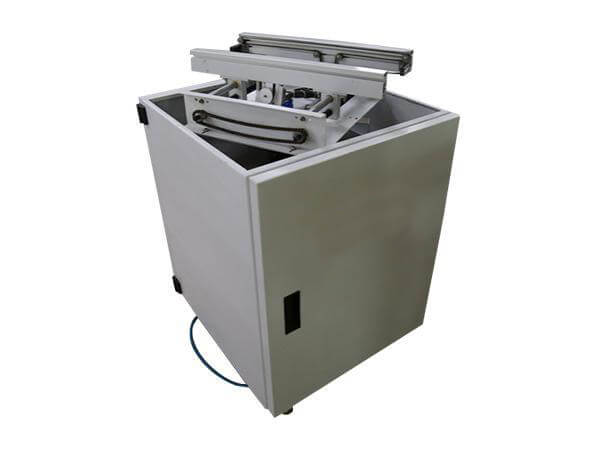

SMT PCB Turning Conveyor

Products description


SMT PCB Turning Conveyor, is designed to turn boards 90° or 180° in L-shaped or T-shaped production lines, providing extreme flexibility for the factory floorplan. dealing with PCB:530 x 460 mm (20.87" x 18.11"), features three openings and a conveyor turntable to reorient PCBs to meet process or floorplan requirements.

Turning Conveyor openings in the left, right, or rear of the unit, allowing it to be oriented in the production line as the manufacturing process and equipment layout dictate.

The conveyor turntable inside the unit is driven in the X, Y, and θ axes so that the PCB can be rotated and then transferred to conveyors running perpendicular to the section of the conveyor from which the PCB came. Full rotation in the θ axis allows boards to be turned a full 180° if necessary to suit PCB orientation requirements of other downstream operations, whether in-line or on perpendicular conveyors.

A pass-through function provides flexibility for diverting NG boards to another section of the line, such as an inspection conveyor or magazine unloader, while allowing OK boards to continue to the next process.

Application
The PCB turn conveyor is used to transport PCB board automatically. It can realize PCB substrate turn and direction transforming. Thus the PCB turn conveyor can save labor cost, meanwhile, it can reduce artificial error and then reduce material consumption.

This machine can be used for board loading and unloading of 90 degree lifting angle in SMT production line. The supply voltage, transport height, transport direction can be set according to customers' requirements.

Technical parameters
Circulation time About 15 seconds
Power supply 220-230V AC (specify), single phase
Electrical load Approx. 180 VA
Air pressure 0.45-0.6Mpa
Gas flow Approx. 30L/min
Transport height 900±20mm (specify)
Transport direction L→R or R→L (optional)
PCB board dimension (L×W) ~ (L×W)
(50×50) ~ (450×300)
Dimension (L×W×H)
520×520×900
Weight Approx.110kg
Features

1. The top safety caps of PCB turn conveyor can be opened for machine hardware maintenance.
2. It is equipped with intelligent touch screen control interface which is quite convenient.
3. The turning speed of PCB board is adjustable to avoid skid.
4. It is equipped with stable width adjustment device (manual screw control).
5. It has small floor space.

6. It is equipped with compatible SMEMA port.
