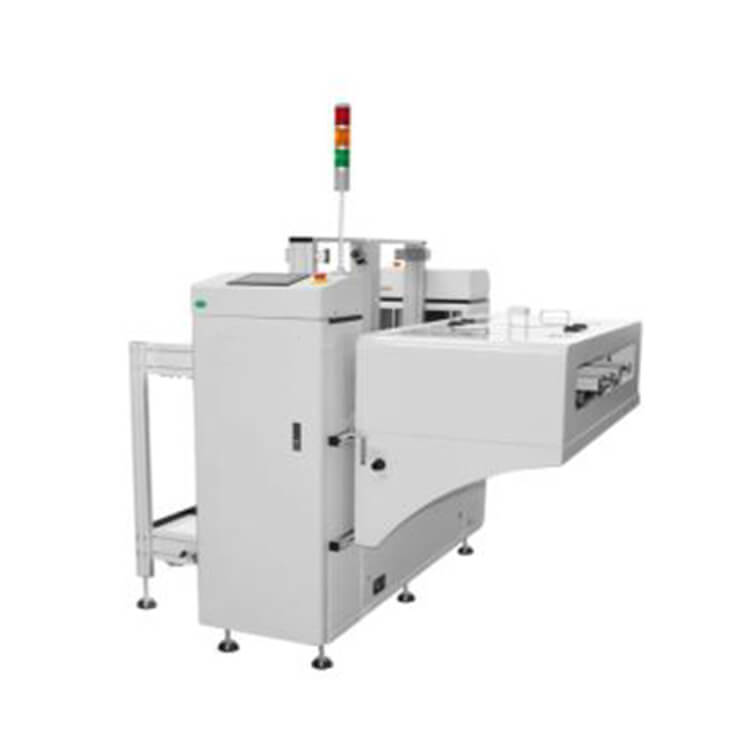

Translational NG/OK SMT PCB Unloader Machine

Translational NG/OK SMT PCB Unloader Machine

  • Dimension: 1730*1530*1250
  • Translational NG/OK SMT PCB Unloader Machine
  • Weight: Approx.: 340kg
  • PCB Size: 50*50 to 530*460
  • Product description: Translational NG/OK SMT PCB Unloader Machine
  • INQUIRY

Translational NG/OK SMT PCB unloader Machine

Products description



Features
1.PLC+Touch screen control , easy to operate.
2.Design with firm structure.
3.The upper and lower air clamps ensure the location of the material box accurately.
4.Special gas path design ensures that the PCB panel is not pushed.
5.Automatic detection of fault code display function.
6.With SMEMA signal .

Product Name
Automatic PCB conveyor SMT Equipment Magazine NG OK PCB magazine unloader used in Production Line
Model
OB-UL728-N
Dimensions
1510*1530*1250mm
PCB size
50*50-330*250mm
Magazine size
355*320*563mm
Magazine qty
Up1,down 1
Magazine change time
About 30s
Pitch
10/20/30/40mm
Power/Power comsuption
AC 1P 110V/220V, 50/60HZ.Max.300VA
Air source
4-6Bar,Max.10L/min.
Conveyor height
910±20mm
Conveyor direction
L-R or R-L(optional)
Weight
Approx.300Kgs

Control System

1

power supply

Single phase 220V

2

Starting power / no-load power

200W

3

Lifting step

10, 20, 30, 40, (mm) can be set arbitrarily

4

Compressed air

5-6KG

5

Fixed edge

Front fixed (can be customized and fixed)

6

Transfer direction

Left to right (can be customized right to left)

7

Transfer height

900±20mm

8

Step selection

1~5 steps (10mm\step)

9

Withstand voltage

AC terminal to ground 1500VAC, 1 minute

10

Use environment

Non-corrosive gas and dust environment

11

Anti-interference

Voltage noise: 1000Vp-p, wave width 1us, 1 minute

12

Transfer connection push PCB board

Stepper motor (42*48)

13

Parallel transfer of NG\OK PCB

Using 86 high precision stepper motor

14

Translational transmission

Imported wire belt timing belt

15

NG line number

Automatically move to the NG storage box (the storage bin can automatically enter and exit)

16

OK line number

Automatically enter the OK box through the translation stage


Keywords:
