  • SMT PCB Vacuum Loader Suction loader
SMT PCB Vacuum Loader Suction loader

SMT PCB Vacuum Loader Suction loader

  • Power Source: 220-230VAC
  • Maximum PCBs Capacity 300 pcs
  • Cycle Time Approx. 6 seconds
  • Power Consumption 180VA max
  • Product description: SMT PCB Vacuum Loader Suction loader Bare Board Loader
  • INQUIRY

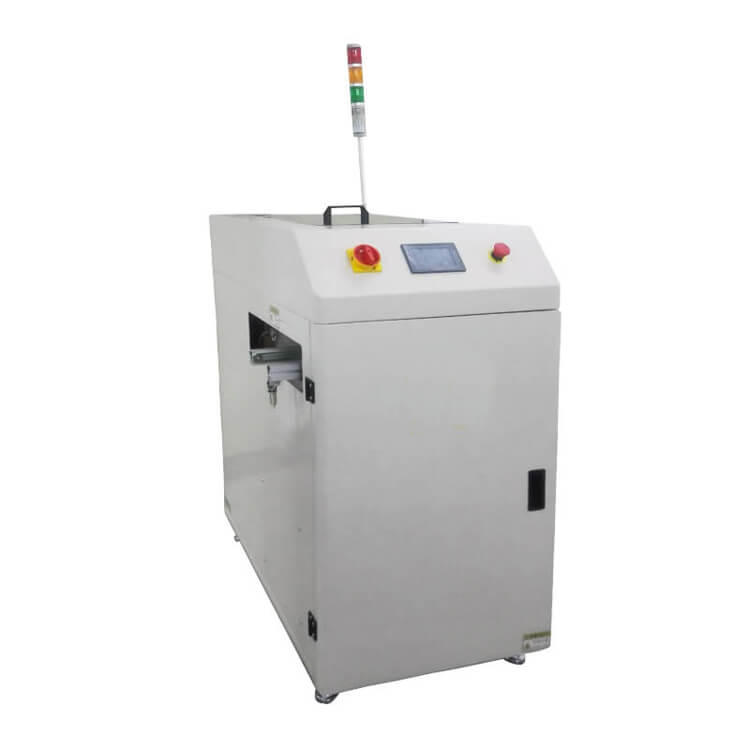

SMT PCB Vacuum Loader Suction loader Bare Board Loader

Products description



Application
The SMT PCB vacuum loader we produced is mainly used to transport and shift the PCB board products and parts. It can realize labor cost saving, product precision and yield improving and manual error reducing and product quality improving by automatic operation.

Technical parameter
Maximum PCBs Capacity 300 pcs (1.0mm thick PCB)
Cycle Time Approx. 6 seconds
Power Source 220-230VAC (specify), 1ph
Power Consumption 180VA max
Air Pressure 4-6 bar
Air Consumption 30 Ltr/min max
Conveyor Height 900±20mm (or specify)
PCB conveyor Direction L→R / R→L(Option)
Effective PCB Size (L×W)~(L×W)
(50x50)~(500x350)
Dimension (L×W×H)
600x 1020x1250mm
Weight
Approx.110kg


Working principle of SMT PCB vacuum loader
The SMT PCB vacuum loader can suck up the PCB board to be processed for printing and soldering by using vacuum absorption under no-dust environment. By using this principle, the position of the substrate can be controlled precisely to protect the substrate from being damaged by contacting with other medium.

Features
1. The SMT PCB vacuum loader is closed when it is working to reduce noise and ensure operating safety.
2. The top safety caps can be opened for machine hardware maintenance.
3. It is equipped with intelligent touch screen control interface which is quite convenient.
4. The position of suction nozzle is adjustable to ensure that the PCB board can be clamped.
5. It is equipped with stable width adjustment device (manual screw control).
6. It has small floor space.
7. It is equipped with compatible SMEMA port.
