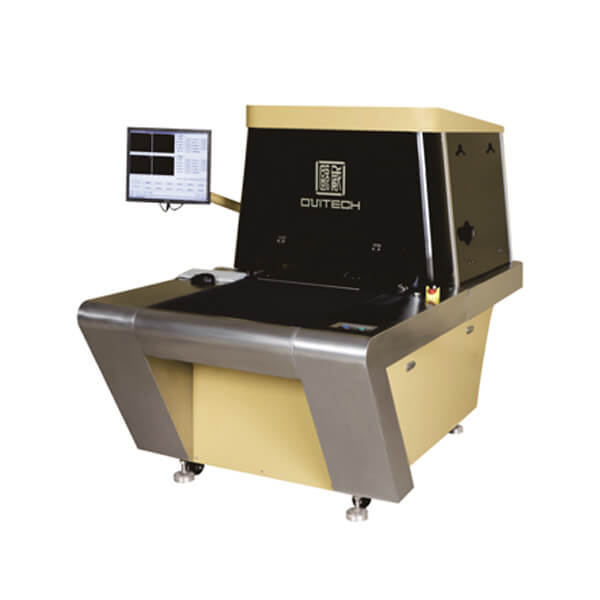

  • PCB Testing PCB circuit Quality Insepction Machine AOI T11
PCB Testing PCB circuit Quality Insepction Machine AOI T11

PCB Testing PCB circuit Quality Insepction Machine AOI T11

  • Scanning:face/hour 200 face 180face 160face 120face
  • Test method based on size:18″×24″ 5mil 4mil 3mil 2mil
  • Demension:2150mm×1350mm×1780mm
  • Weight:1500KG
  • Product description: PCB Testing PCB circuit Quality Insepction Machine AOI Scanning:face/hour 200 face 180face 160face 120face, Test method based on size:18″×24″ 5mil 4mil 3mil 2mil, Detectable Defects:open circ
  • INQUIRY

PCB Testing PCB circuit Quality Insepction Machine AOI T11

PCB circuit Quality Insepction Machine Specification



Defects Inspection Range:


More......

Performance  Description
Equipment sizeL×W×H 2150mm×1350mm×1780mm
Equipment Weight1500kg
Working Electric Power: AC 380V± 5% 50 Hz 3.7 KWh Three-phase five-wire (TN-S) system
Standard resources and referencesRS-274X GERBER Format  ODB++ Format
Test capabilityLine Width/ Line Space down to 2mil
Line Width / Line Space Test method based on size18″×24″
5mil 4mil 3mil 2mil
Scanningface/hour   200 face  180face  160face  120face
Table size26″×28″660×711mm
Test Area24″×26″610×660mm
Board FormInner/outerCabling type including signalpower supply groundmixed shieldinggrid and others.
Test Materialplating copper boardgolden boardnickel-plated boarddry / wet film boardFR-4CEM and flexible board material
Can Detectable Defectsopen circuitshort circuitnicksburrspinholescopper slagcopper isolated convex circleline width / line space irregularitiesleakage drillingholes shift.
Defect inspection methodelements characteristics of study sub-pixel contour analysis and comparison.
System Software Installation environmentWindowsXP Windows2003  Windows7
Position SystemServo motor positioning system
Mechanical DrivePrecision guides + ball screw transmission system
Illuminant SystemLED cold light concentrating highlighted system
