  • 8 Head Pick And Place Machine HW 08

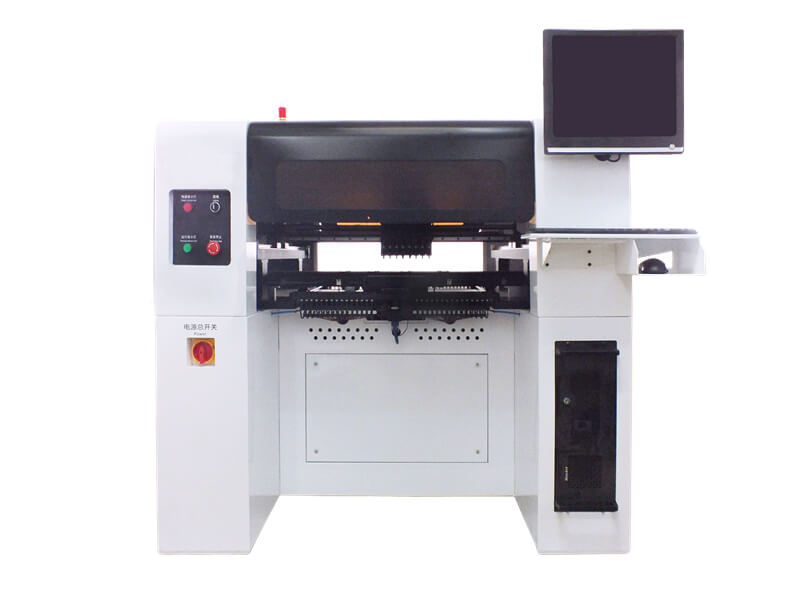

8 Head Pick And Place Machine HW 08

8 Head Pick And Place Machine HW 08

  • Number of feeders::68
  • Number of mounting head:8 head
  • mounting speed: 25000CPH
  • Dimension: 1420*1370*1350mm ​
  • Product description: China 8 Head Pick And Place Machine factory supplier manufacturer, Number of feeders::68, Number of mounting head:8 head, mounting speed: 25000CPH, Dimension: 1420*1370*1350mm , Unit price:20000USD.
  • INQUIRY

8 Head Pick And Place Machine HW 08

Description:


Product Specifications:
1. At the request of new and old customers, Beijing Huawei Guochuang Electronic Technology Co., Ltd. has accumulated a lot of technology accumulation, and the latest one is a medium-sized enterprise that meets the needs of mass production, stable and reliable, cost-effective multi-functional placement machine. It can not only stably and accurately mount common 0201, 0402, 0603, 0805, 1206, 1210, LED3528 devices, LED5050 package devices, diodes, triodes SOT, etc.; it also adds the following three functions:The biggest highlight of this device is the addition of 5 megapixel high-definition industrial grade calibration camera with professional placement chip and its supporting 5 megapixel HD distortion-free industrial vision lens. After technical breakthrough, it can effectively mount 0.3mm within 40*40mm. The chip with a pitch of more than 0.5mm (center distance) has a success rate of more than 98%, which completely solves the problem of dense chip and BGA chip placement.
2. Eight industrial-grade quick-recognition cameras have been added, which can simultaneously identify the efficiency of the large-floating lifting and mounting, and almost double the mounting efficiency on the original basis.。
3. The automatic scanning mark point and the three-stage automatic feeding function are added to further improve the mounting accuracy when the PCB board is replaced, thereby improving the production efficiency, making the operation more convenient and simple, and connecting with other equipment to generate the SMT assembly line.
4. The core part of the upgrade of the eight-head machine is mainly reflected in the software algorithm processing. This version has deep data optimization in the programming process, which is mainly reflected in the fact that the operator participates less and less in the programming process, and most of the tedious work is paid. To the computer to complete, the operator has to do is to install Feida according to the advice given by the software.。

This product has completed the final test and is officially put into the market. It is equipped with high-end performance and easy to understand. It is a fully automatic and cost-effective automatic placement machine.

[Technical Parameter]
○Number of feeders::68
○Number of feeding traies::8
○ Average power: 700W
○ Positioning precision: 0.01mm
○The buffer range of suction nozzle: 4.5mm
○ Power supply: 220V, 50/60Hz
○ Compressed air: 0.5-0.6Mpa
○ Drive motor: Panasonic servo motor
○ Recognition mode: simultaneous recognition of six heads
○ Vacuum source of suction nozzle: high-speed on-off vacuum generator with vacuum breaker
○ Maximum circuit board area: 500×455mm
○ Maximum travel scope in Z axis: 20mm
○ Tape feeder: 8, 12, 16, 24mm and vibration suction (mounting pipe chip)
○ Maximum mounting speed: 25000 Pcs/h
○ Average mounting speed of actual mounting resistance: 15000Pcs/h
○ XYZ drive guide rail: TBI high-precision reloading linear guide rail.
○ Motion drive system: Panasonic high-speed DSP drive
○ Operating system: full-automatic chip mounter operating system independently developed by Huawei Guochuang based on Windows operating system, and it supports windows xp, win7 operating system.
○ Element angle: 0-360°, synchronous rotation during movement
○ X/Y operation mode: intelligent curve of the linear acceleration and deceleration linkage
○ MARK point positioning: full-automatic (the MARK point can be adjust at will)
○ Intelligent alarm: automatic correction, automatic filling, feeding shortage alarm
○ Plate entering mode: automatic connection from left to right in single sections, automatic PCB transfer positioning. /plunger positioning, manual plate feeding.
○ Visual display: 17-inch industrial control display, 4:3, resolution: 1280 x1024
○ Number of recognition cameras: One Mark recognition camera, four quick-recognition cameras and one precise-recognition camera.
○ Number of recognition cameras: One Mark recognition camera, six quick-recognition cameras and one precise-recognition camera.
○ Adaptive mounting scope: Adaptive to 0402, 0603, 0805, 1206, diode, audion, SOT, QFP within 40*40mm and the pin distance ≥0.3mm (0.5mm center distance) and BGA.
○ Product weight 600KG
○ Dimension: 1420*1370*1350mm
