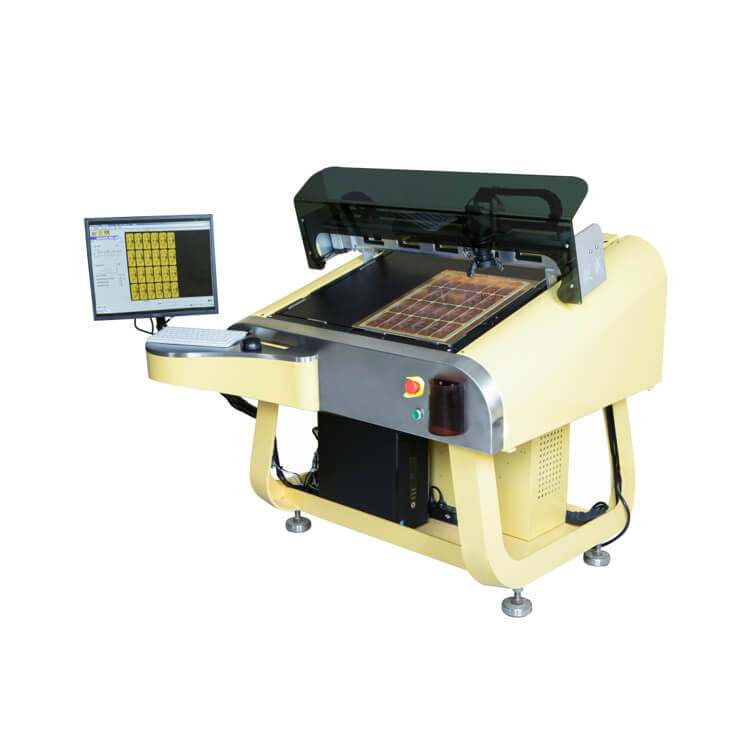

PCB circuit Verify Repair Machine VRS

PCB circuit Verify Repair Machine VRS

  • Identification of defects:red laser instructions
  • Maintenance Area:24″×26″(610×660mm)
  • Demension:1600mm×1150mm×1300mm
  • Weight:400KG
  • Product description: PCB circuit Verify Repair Machine VRS, Identification of defects:red laser instructions, Maintenance Area:24″×26″(610×660mm, Demension:1600mm×1150mm×1300mm, Weight:400KG
  • INQUIRY

PCB circuit Verify Repair Machine VRS

PCB circuit Quality Insepction Machine Specification


Defects Inspection Range:

More......

Equipment sizeL×W×H  1600mm×1150mm×1300mm
Equipment Weight400KG
Working Electric PowerAC 380V±5%  50Hz 1.7KWh   Three-phase five-wire (TN-S) system
Standard resources and referencesRS-274X GERBER Format  ODB++ Format
Image magnification30-100 times
Table Size26″×28″660×711mm
Maintenance Area24″×26″610×660mm
Focus ModeManual focus
Move Speed1000mm/s
Identification of defectsred laser instructions
Processing softwareUltra Vision Process Software
System Software Installation environmentWindows XP Windows7 Windows2003
Position SystemServo motor positioning system
Mechanical TransmissionTrack and Belt drive System

Keywords:

AOI Machine, Panasonic AOI Machine, SMT  AOI Machine,PCB AOI Machine

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
