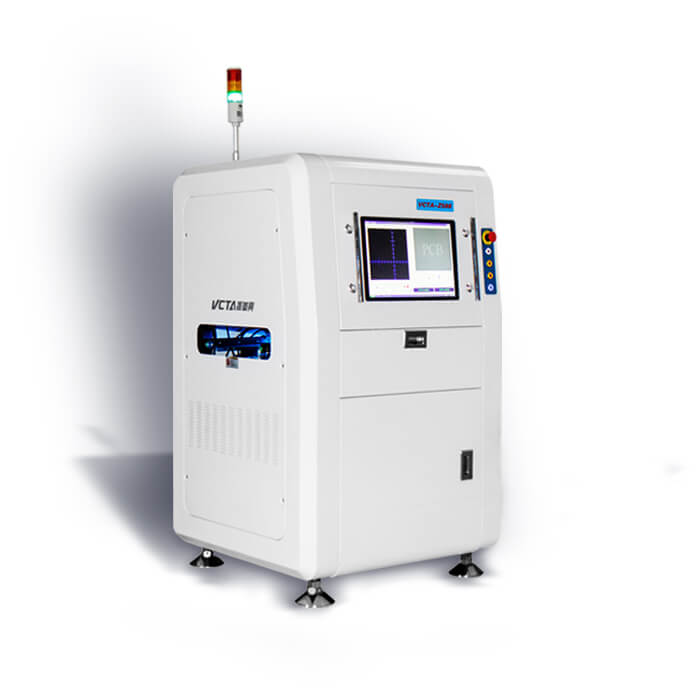

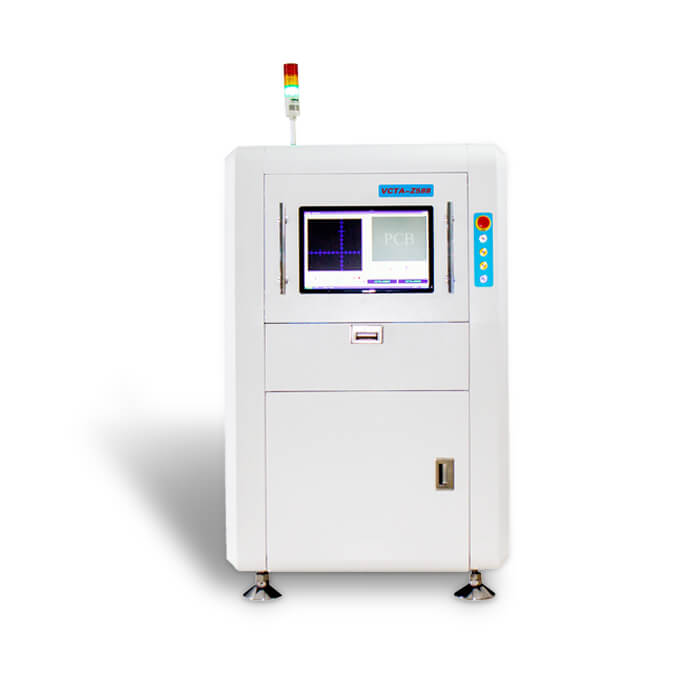

  • PCB Inspection Online AOI Machine Z588
  • PCB Inspection Online AOI Machine Z588
PCB Inspection Online AOI Machine Z588PCB Inspection Online AOI Machine Z588

PCB Inspection Online AOI Machine Z588

  • Inspection Component: 01005 chip
  • PCB size::50×50mm-330×400mm
  • Dimension:950mm×1000mm×1580mm
  • Weight: 670kg
  • Product description: PCB Inspection Online AOI Machine Z588, Inspection Component: 01005 chip, PCB size:50×50mm-330×400mm, Dimension:950mm×1000mm×1580mm, Weight: 670kg.
  • INQUIRY

PCB Inspection Online AOI Machine Z588

AOI Specification:

Flexible / versatile AOI
Different models are suitable for the production of multiple quality control positions in the line, including 2D solder paste quality inspection after solder paste printing, component measurement before reflow soldering, PCBA process quality inspection after reflow soldering, and hand-insertion wave soldering inspection

New light source design
The multi-angle multi-angle light source design scheme is used to sample the detailed features of the detected object by different angles of illumination, and the assembly and welding information of the component are accurately obtained, and the defect is effectively eliminated.

Multi-algorithm free combination
Z series software can use multiple detection algorithms in the single detection frame according to the detection needs, avoiding repeated frame pull, improving program design efficiency and bad detection rate.

Multi-function color extraction
Z series software can effectively detect the defects of surface mount, red glue process and wave soldering process to prevent leakage of defective products.

BGA detection function
It is used to detect whether the BGA solder ball is less tin, tin, ball, and tin before the patch. In addition, it can also be used for PCB solder paste printing in the BGA area, such as less tin, missed printingn
Z series software can effectively detect the defects of surface mount, red glue process and wave soldering process to prevent leakage of defective products.

Feature:

1.HD image, easy for 01005 chip.

2.Full color image statistics analysis

3.Optical character recognition(OCR)

4.IC bridge analysis

5.Color analysis

6.Graphics similarity

7.Black white ratio analysis

8.Intensity analysis

9.Non linear color analysis

10.CAD data input and output

11.MPF technology, fast programming

12.Camera barcode identification(1D&2D)

13.Spare component library

14.Auto double side test

15.Auto skip test

16.SPC

17.Off line inspection system

18.NG Rate 99%, Repeat accuracy 3 pcs, False Negative 10PPM, False Positive 5000PPM

Inspection System & Optical System

Inspection Object

Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /
Cold joint / insufficient solder / Excess solder

Inspection Component

01005 chip , IC pitch 0.3mm, wave soldering point

Inspection Method

Color image comparison, OCR, IC Short Analysis, Graphics Similarities Analysis, Color Analysis, Gray Analysis

Camera

Color CCD (2M) , Resolution 15um, FOV 24*18mm, Speed :2000 mm2/s

Light Source

RGB cascade multi-angle LED combination lighting, high brightness, 2M pixels tele-centric lens, DOV:8mm

Software & Computer

Inspection capability

120 points/sec ; programming time : 1-1.5 hr/1000 components, NG inspection rate >99%
False reject rate : 005 - 3.0% (repeatability <3pcs) , False accept rate <0.01%

Mark Recognition

2 points, support multi-board multi-mark points, support bad mark ; Process speed 0.5sec/pcs

Computer

Dual core 2.7G, DDR II 2.0G, 500G hard disk, 22" wide screen LCD

Mechanical System

PCB Thickness

0.3 - 5.0 (PCB curvature?5mm)

PCB Height

Top: 30mm, Bottom 35mm (can be customized)

Driving Method

AC Servo Motor + ball screw rod + linear guide rail

Motion Speed

Max 700mm/s

PCB Size 330×400mm

, Auto-width adjustment

Conveyor Height

900± 20mm

Power

220V/50Hz, 650W,UPS 1000 VA uninterruptible power supply

Compressed Air

Max 0.3MPa

Dimension

1000mm×960mm×1600mm (alarm lamp height not included) ; alarm lamp height: 550mm

Weight

670kg
