Home > SMT Inspection machine

  • China Automatic online AOI machine factory

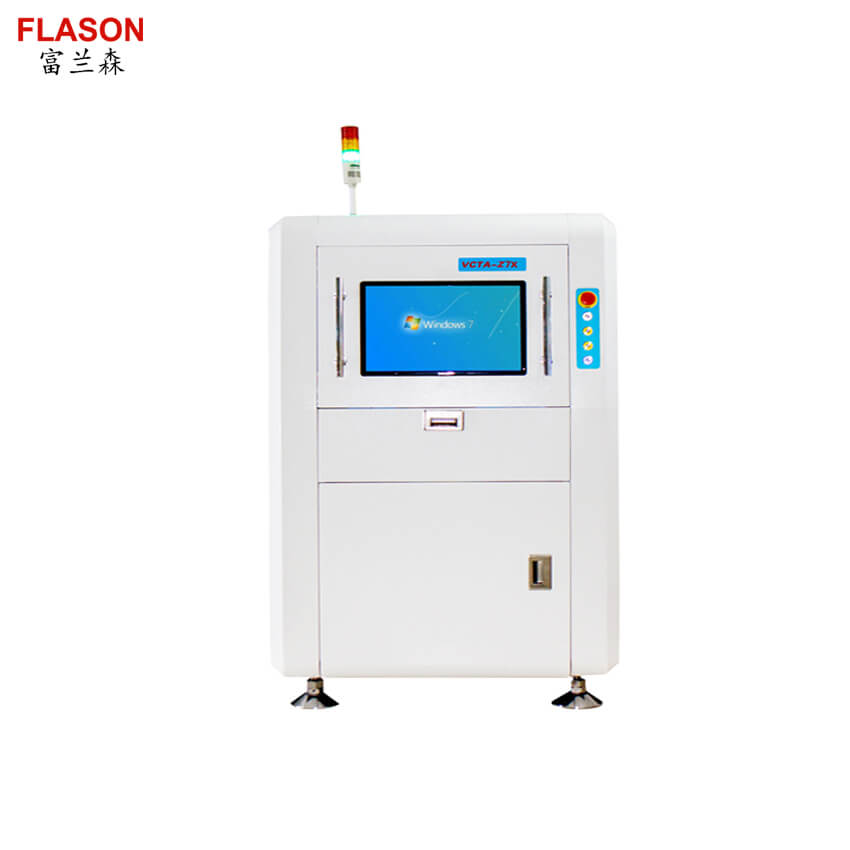

China Automatic online AOI machine factory

China Automatic online AOI machine factory

  • Inspection Component: 0201 chip
  • PCB width:380*380mm
  • Dimension:980*1080*1410 mm
  • Weight:600kg
  • Product description: China Automatic online AOI machine factory
  • INQUIRY

China Automatic online AOI machine factory


AOI Specification?

Inspection System & Optical System

Inspection Object

Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /
Cold joint / insufficient solder / Excess solder

Inspection Component

0201 chip , IC pitch 0.3mm, wave soldering point

Inspection Method

Color image comparison, OCR, IC Short Analysis, Graphics Similarities Analysis, Color Analysis, Gray Analysis

Camera

Color CCD (2M) , Resolution 15um, FOV 24*18mm, Speed ?2000 mm2/s

Light Source

RGB cascade multi-angle LED combination lighting, high brightness, 2M pixels tele-centric lens, DOV:8mm

Software & Computer

Inspection capability

120 points/sec ; programming time : 1-1.5 hr/1000 components, NG inspection rate >99%
False reject rate : 005 - 3.0% (repeatability <3pcs) , False accept rate <0.01%

Mark Recognition

2 points, support multi-board multi-mark points, support bad mark ; Process speed 0.5sec/pcs

Computer

Dual core 2.7G, DDR II 2.0G, 500G hard disk, 22" wide screen LCD

Mechanical System

PCB Thickness

0.3 - 5.0 (PCB curvature?5mm)

PCB Height

Top: 30mm, Bottom 35mm (can be customized)

Driving Method

AC Servo Motor + ball screw rod + linear guide rail

Motion Speed

Max 700mm/s

PCB Size

380*380mm, Auto-width adjustment

Conveyor Height

900± 20mm

Power

220V/50Hz, 650W,UPS 1000 VA uninterruptible power supply

Compressed Air

Max 0.3MPa

Dimension

980*1080*1410 mm (alarm lamp height not included) ; alarm lamp height: 550mm

Weight

600kg

Future:




1.HD image, easy for 0402 chip.

2.Full color image statistics analysis

3.Optical character recognition(OCR)

4.IC bridge analysis

5.Color analysis

6.Graphics similarity

7.Black white ratio analysis

8.Intensity analysis

9.Non linear color analysis

10.CAD data input and output

11.MPF technology, fast programming

12.Camera barcode identification(1D&2D)

13.Spare component library

14.Auto double side test

15.Auto skip test

16.SPC

17.Off line inspection system

18.NG Rate?99%, Repeat accuracy?3 pcs, False Negative?10PPM, False Positive?5000PPM


Automatic Focusing, High clear.

Key words:

SMT online AOI machine,China smt AOI machine, China AOI machine, SMT inspeciton machine china factory, smt assembly line AOI machine factory, AOI machine supplier, SMT assembly machinePCB inspection machine Manufacturer, LED online AOI machine china supplier, LED PCB online AOI machine.


Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow ovenTHT wave soldering machinepick and place machinesolder paste printerPCB loaderPCB unloader, chip mounterSMT AOI machineSMT SPI machineSMT X-Ray machineSMT assembly line equipmentPCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
