  • SMT AOI Machine Offline A410
  • SMT AOI Machine Offline A410
SMT AOI Machine Offline A410SMT AOI Machine Offline A410

SMT AOI Machine Offline A410

  • Dimension:870*1040*1300 mm
  • Max PCB Size:330x480mm
  • Inspection Component: 0201 chip
  • Weight:Aprox. 360kg
  • Product description: SMT AOI Machine Offline A410,Dimension:870*1040*1300 mm,Max PCB Size:330x480mm,Inspection Component: 0201 chip,Weight:Aprox. 360kg
  • INQUIRY

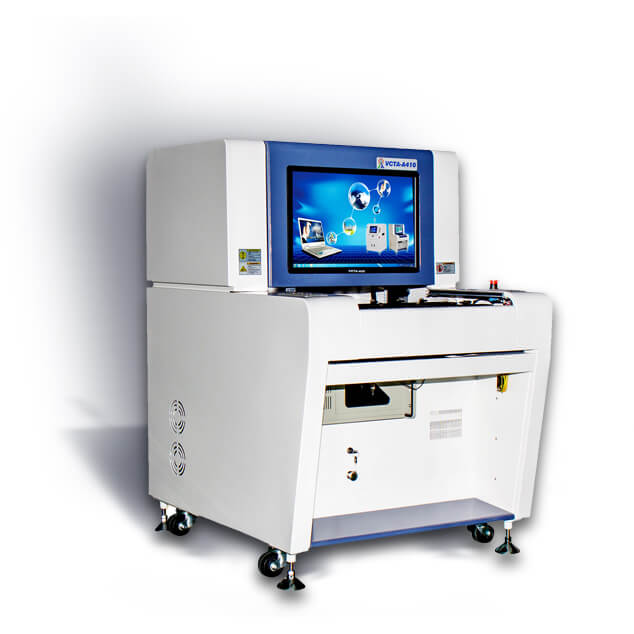

SMT AOI Machine Offline A410

SMT AOI machine Specification



Easy to operate and multi-function AOI
Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, check component defects before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.

Multi-algorithms and techniques
Novel structure and tight security;
Simple programming and debug mode, easy to operate;
Automatically identify PCB, and automatically identify if the board is put on 180° reverse side;
Simultaneous inspection for multi-boards and inspection shift of 2 sides of board (components top and bottom) improves the inspection efficiency;
Smart camera barcodes identify system. (The camera can identify single-dimensional barcode and data matrix barcode);
Professional SPC analysis system, monitoring and analysis the quality of products in real time;
Multiple machine monitoring system, can know well of all production lines’ condition;
Remote programming and debugging make the software is more easy and convent.

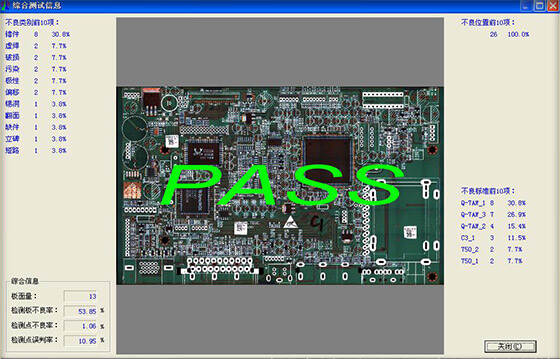

Simple test results report
The test report contains some contents of SPC, according to the real test case shows the ratio of NG and distribution, real-time show the quantity of the testing boards 、parts per million 、false-positive rate and other relevant information, so the operator is easy to know the detail of the production line.

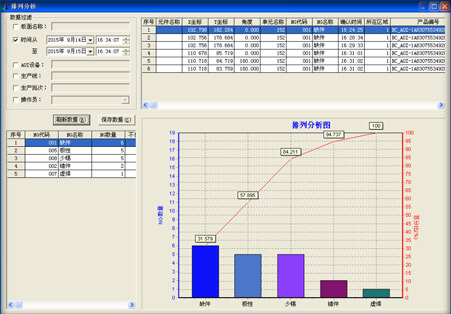

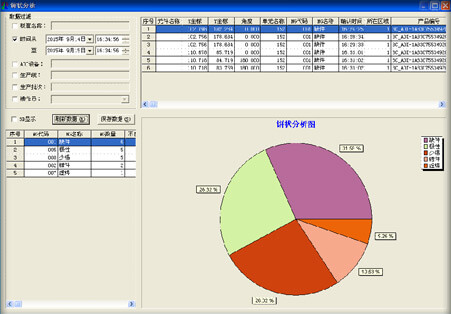

Professional SPC system
Professional SPC analysis report to macroscopic readjustment and control the production line, reduce the incidence and raise produce Efficiency.

Inspection System & Optical System

Inspection Object

Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /
Cold joint / insufficient solder / Excess solder

Inspection Component

0201 chip , IC pin(0.3mm pitch), wave solder

Inspection Method

Full color image statistic analysis, OCP, IC bridge analysis, color linear analysis color non-linear analysis, similarity analysis, black-white ratio analysis, intensity analysis

Camera

Color CCD (1.45MPa Pixels), Resolution 20um, FOV 20*20mm (customized), speed:2000mm²/s

Light Source

RGB Ring Multi-angle LED combination lighting, high brightness, standard CCTV lens, DOV 2mm

Software & Computer

Computer

CPU: Dual-core 2.7G, RAM: DDRIII-2G hard disk : 120G, 22" wide screen LCD

Mechanical System

PCB Thickness

0.3 - 5.0 (PCB Warpage < 5mm)

PCB Width

25x25-330x480mm (can be customized)

Driving Method

AC Servo Motor+ball screw rod+linear guide rail

Motion Speed

Max 700mm/s

PCB Clamp

Automatic

Power

AC220V / 50Hz, UPS 1000W

Dimension

870*1040*1300 mm

Weight

Aprox. 360kg

Off line AOI Inspection machine Future:

1. HD image, easy for 0201 chip.

2. Full color image statistics analysis

3. Optical character recognition(OCR)

4. IC bridge analysis

5. Color analysis

6. Graphics similarity

7. Black white ratio analysis

8. Intensity analysis

9. Non linear color analysis

10. CAD data input and output

11. MPF technology, fast programming

12. Camera barcode identification(1D&2D)

13. Spare component library

14. Auto double side test

15. Auto skip test

16. SPC

17. Off line inspection system

18. NG Rate<99%, Repeat accuracy<3 pcs, False Negative<10PPM, False Positive<5000PPM.
