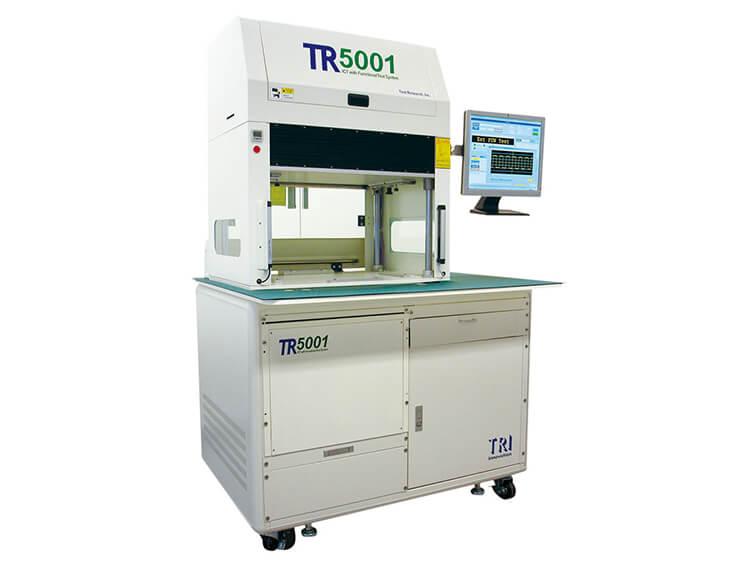

In-Circuit Tester TRI ICT TR5001

Max PCB:420 x 300 mm
Weight: 300 kg
Dimension: 1050 x 850 x 1735 mm
Product description: In-Circuit Tester TRI ICT TR5001, Max PCB:420 x 300 mm, Weight: 300 kg, Dimension: 1050 x 850 x 1735 mm
INQUIRY

In-Circuit Tester TRI ICT TR5001

Product Specification

Designed as an expandable platform for testing PCBAs, the TR5001 provides an economical, customizable solution that can fully meet testing requirements of most customers. TR5001 incorporates MDA with selectable ICT and Functional test capabilities that cut production line staff costs, save testing time and increase productivity.

• Modular upgrade options from MDA to ICT and functional test
• High fault coverage test solution
• Limited access solution and functional test expansion using PXI modules
• Friendly UI with fast and easy program development

Tester Specifications
Analog/hybrid test points	3200 analog or maximum digital test points: 1600
Operating System	Microsoft® Windows 10
Fixture Type	Offline press type fixture
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement, frequency
	Component R/L/C measurement
Optional Components
Analog Hardware	TestJet vectorless open circuit detection
Analog Hardware	Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
	Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0
Board Handling
Max PCB Size	Standard: 420 x 300 mm
Max PCB Size	Option: 500 x 350 mm or larger
Dimensions
WxDxH	1050 x 850 x 1735 mm
Weight	300 kg
