X-TEK NIKON Revolution 160KVa 20W X-Ray

X-TEK NIKON Revolution 160KVa 20W X-Ray

  • 5-Axis Parts Manipulator
  • 5 Kg Capacity 20 In. x 20 In.
  • 407 x 407mm Scan Area
  • 160KV 20W Nanotech TT X-Ray Unit
  • Product description: X-TEK NIKON Revolution 160KVa 20W X-Ray, Flat Panel, CT imaging, 5-Axis Parts Manipulator, 5 Kg Capacity 20 In. x 20 In.407 x 407mm Scan Area, 160KV 20W Nanotech TT X-Ray Unit

X-TEK NIKON Revolution 160KVa 20W X-Ray

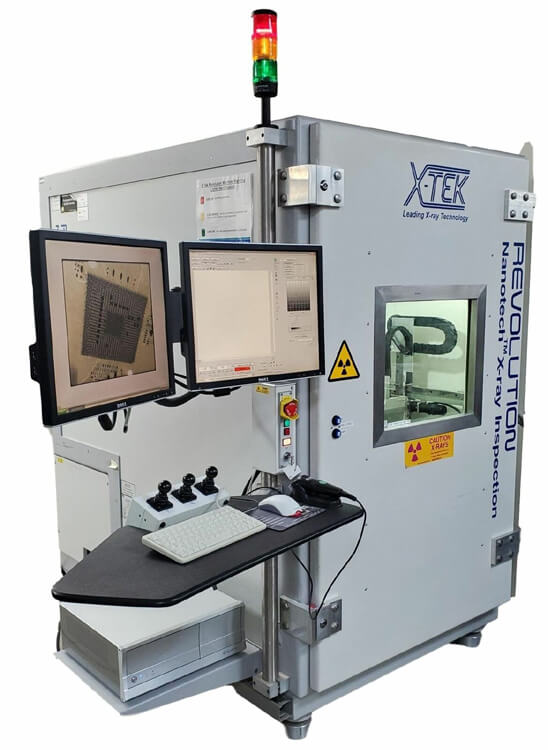

X-TEK Revolution X-Ray Inspection Machine

This is a very high quality system with incredible image quality.  Reconditioned and serviced and ready for use. New cost of this machine was close to 400K.

Huge Varian PaxScan flat panel detector on a tilt axis

Table has rotation for full 360 oblique viewing

6000X Max Magnification,

160KV 20W Nanotech TT X-Ray Unit

5 Kg Capacity 20 In. x 20 In.

5-Axis Parts Manipulator with CT Rotating Chuck Option,

407 x 407mm Scan Area

Dell Precision T5600 Desktop Computer with Metris Inspect-X Suite Version 1.60.3509.26893

2008 vintage, SW upgraded 2017

Machine has the ability to be used in many industries, PCB, Semicondutoctor, Aersopace manufacturing, Orthopedics


SMT AOI Machine, Offline AOI Machine, Inline AOI Machine, SMT X Ray Machine, SMT SPI Machine, 3D SPI Machine, 3D AOI Machine, SMT AOI SPI Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, includingSMT reflow oven, wave soldering machine, Pick and place machine, Solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT Spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: [email protected]


1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
