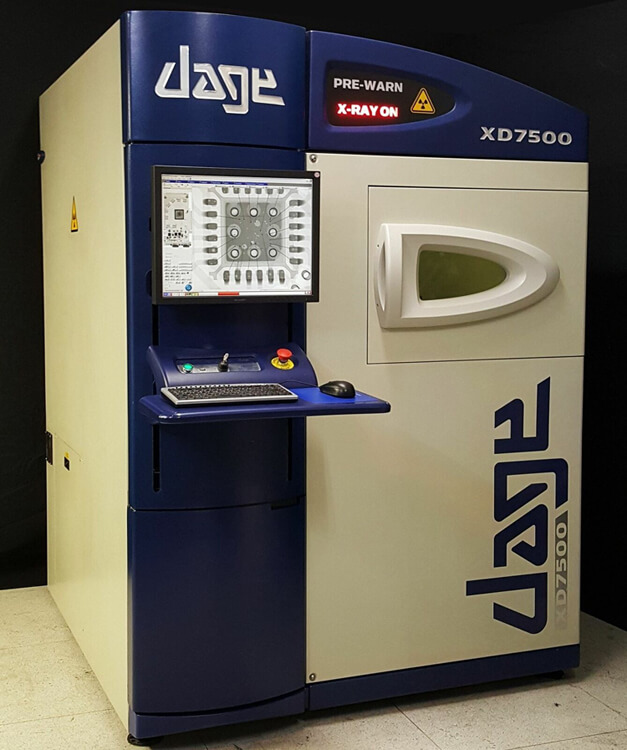

DAGE XD7500 TR Open Tube 160KVa PCB BGA X-Ray machine

DAGE XD7500 TR Open Tube 160KVa PCB BGA X-Ray machine

  • PCB size:50x60-330x330mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: DAGE XD7500 TR Open Tube 160KVa PCB BGA X-Ray machine
  • INQUIRY

DAGE XD7500 TR Open Tube 160KVa PCB BGA X-Ray machine

Introduce:

Features
Nordson DAGE's award-winning DAGE X-RAY is specially designed for the printed circuit board (PCB) and semiconductor industries and adopts an ergonomic design to provide a high-resolution nano-focus X-ray system, not only for laboratory failures Analysis can also be used in production environments. The Dage NT sealed transmission X-ray tube is the core component of the Dage NT X-ray inspection system. It replaces the closed tube and open tube used in the earlier system, and its performance has been greatly improved. Only by adopting a sealed transmission tube can the resolution of X-ray images be effectively improved, and at the same time, high power can be provided without affecting the resolution and magnification.

The Dage X-ray inspection system is specially designed for the printed circuit board (PCB) and semiconductor industries, and adopts an ergonomic design. It can provide a high-resolution nano-focus X-ray system, which can be used not only for laboratory failure analysis, but also Can be used in a production environment.

The Dage NT sealed transport X-ray tube of the DAGE X-ray inspection machine is the core component of the Dage NT X-ray inspection system. It replaces the closed tube and open tube used in the earlier system, and its performance has been greatly improved. Only by adopting a sealed transmission tube can the resolution of X-ray images be effectively improved while providing high power without affecting the resolution and magnification.
Product number:
1.DAGE XD7500VR Jade FP X-ray inspection machine
XD7500VR Jade FP is equipped with an open transmission X-ray tube, which is an economical equipment for quality control of PCBA production.
High resolution-950nm (0.95um) feature recognition
Maximum voltage 160KV, target power: 3W
High magnification-1400 times geometric magnification, 4200 times system magnification
Maximum test sample size: 736 x 580 mm
Dage VR open X-ray tube is the core component of DAGE XD7500VR X-ray inspection system. This product provides an entry-level system for customers who prefer to retain open tube technology. It can achieve: 30-160 kV, 950 nm level feature recognition, the highest power can reach 3W
2.DAGE XD7500VR Jade Plus X-ray inspection machine
Jade Plus uses an open X-ray tube with replaceable tungsten filaments and can achieve a characteristic resolution of 1μm at a maximum power of 3 W.
X-ray tube: open transmission tube
Feature resolution: 0.95 μm
Target power: 3 W
Voltage: 30-160 kV
Resolution: 1.33 MP
Detection area: 510 x 445 mm (20 x 17.5”)
Magnification: up to 7500 times
3. DAGE Quadra 5 X-ray inspection machine-Flexible X-ray has the function of detecting 0.35um defects.
Quadra5 has excellent magnification and power, and can be used for PCB, semiconductor packaging and wafer level inspection as well as failure analysis and finished product quality control.
The sealed transmission tube technology used in Quadra 5 is better than the open tube technology, which can provide high power without reducing the resolution and magnification.
System specifications
Tube type: QuadraNT sealed transmission tube
Feature resolution: 0.35 microns within 10 watts, 0.95 microns within 20 watts
Maximum power: 10 watts (20 watts optional)
Voltage: 30-160 kV
Maximum geometric magnification: 2500 times
Maximum total magnification: 45,000 times
4.DAGE Quadra 7 X-ray inspection machine
Quadra 7 has a characteristic resolution of 0.1 μm and can realize ultra-high-definition images. It is an ideal X-ray inspection equipment for failure analysis and production quality control. As components and circuit boards get smaller and smaller, Quadra 7 can help you meet current and future quality needs.
Quadra7 has excellent magnification and power, and can be used for PCB, semiconductor packaging and wafer level inspection as well as failure analysis and finished product quality control. It is used in a wide range of industries including electronic packaging and wafer-level manufacturing, automotive, energy and aerospace electronic product testing, as well as medical equipment and LED manufacturing.
The sealed transmission tube technology used in Quadra 7 is superior to the open tube technology and can provide high power without reducing resolution and magnification.
Good image quality
Quadra 7 dual 4K Ultra HD displays allow you to enjoy the following conveniences:
0.1 micron sub-micron feature resolution
6.7 million pixel X-ray image matching high-resolution scintillator
8 million pixel display
Flat panel detector with a pixel pitch of 50 microns
Feature recognition reaches 20 watts at 0.3 micron
Provides high-contrast detection for challenging applications
Real-time image processing
System specifications
Tube type: QuadraNT sealed transmission tube
Feature resolution: 0.1 micron within 10 watts, 0.3 micron within 20 watts
Maximum power: 20 watts
Voltage: 30-160 kV
Maximum geometric magnification: 2500 times
Maximum total magnification: 68,000 times
Display: dual, 24 inches, 4K ultra high definition picture quality, resolution 3840 x 2160
5.DAGE XD7800NT Ruby XL X-ray inspection machine-large board application solution
The DAGE XD7800NT Ruby XL X-ray inspection machine is a system for non-destructive X-ray inspection of large-scale samples. The inspection area can reach 96 x 67 cm (37.9" x 26.4"). It is an ideal solution for large plate applications.
0.5 μm feature recognition can realize PCBA-level quality control, package-level detection and failure analysis.
advantage
Nordson DAGE NT500 Maintenance-free, sealed transport X-ray tube
Proven feature recognition of <0.5 μm 160 kV tube (10 W target power)
Always retain sub-micron capabilities
Nordson DAGE 2 Mpixel @ 25fps XiDAT3 digital image intensifier, providing real-time image enhancement
Geometric zoom 1,800 X, system 7,800 X and total 23,400 X digital zoom
Maximum inspection size 1205 x 672 mm
70° oblique view without loss of magnification
Two 24” TFT LCD monitors
AXiS-Active X-ray image stabilization
No programming skills are required for automated inspection tasks
The Dage X-ray inspection machine tester is designed to meet the growing needs of the PCB and semiconductor industries. Users can easily obtain high-quality, high-magnification, and high-resolution images of the object under test in any orientation.
