  • Siemens Siplace E series Pick And Place Machine

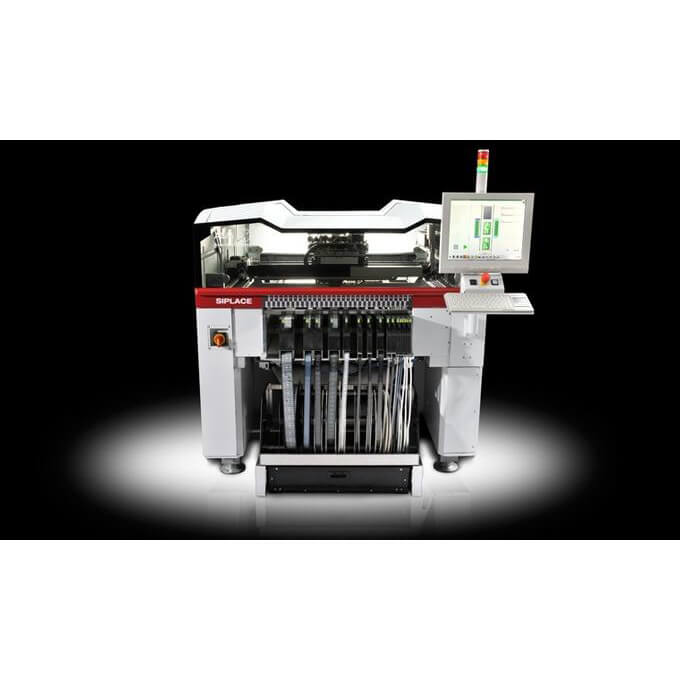

Siemens Siplace E series Pick And Place Machine

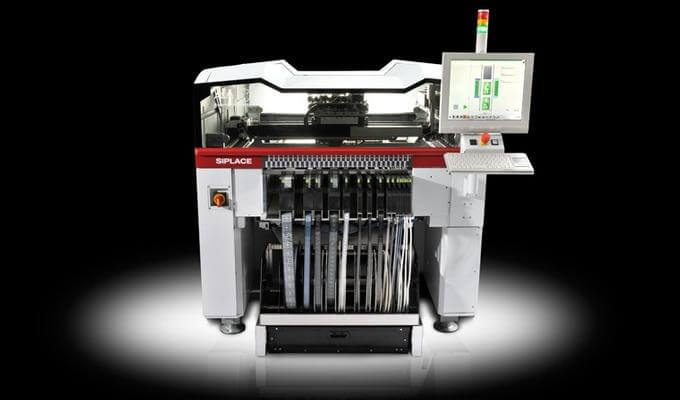

Siemens Siplace E series Pick And Place Machine

  • Siemens Pick and Place Machine
  • Patch speed:24000CPH
  • Dimension:1,500 mm x 1,666 mm
  • Weight: 1,850 kg
  • Product description: Siemens Siplace E series Pick And Place Machine SMT Flexible chip mounter, Patch speed:24000CPH, Dimension:1,500 mm x 1,666 mm, Weight: 1,850 kg

Siemens Siplace E series Pick And Place Machine


Siemens Siplace E series Pick And Place Machine

Placement Machine SIPLACE E
Heads CP14, CP12, CP12/PP, CP6/PP, TH
PCB Size(LxW) 1,200 x 460 mm
PCB Thickness 0.3 - 4.5 mm
Feeder Capacity 120 x 8 mm
Power Supply 3 x 200/208/220/230/380/400/415 VAC ± 10%, 50/60 Hz, 1.8 KW
Compressed Air 5.0 bar (0.5 MPa) - 10.0 bar (1.0 MPa)
Air Consumption 90 NL/Min 90 NL/Min 140 NL/Min 140 NL/Min 185 NL/Min
Dimension (LxW) 1,500 mm x 1,666 mm
Weight 1,850 kg
Basic parameters:

Siemens SMT shooter: D4, D2, D1, S20 25 27 50 60, F3, F4, F5

Mounting head CP20 placement head CP12 placement head TH placement head
Component range 01005~6×6mm 0201~18.7×18.7mm 0201~200×125mm
Component height 4 mm 6 mm 25 mm
Mounting accuracy ±41μm, ±0.5°@3σ ±41μm, ±0.5°@3σ ±22μm, ±0.05°@3σ
Model DX4 DX2 DX1
Applicable heads CP20 CP20, CP12, TH CP20, CP12, TH
Theoretical speed 135,500 CPH 65,500 CPH 33,300 CPH
IPC speed 90,500 CPH 38,000 CPH 22,500 CPH
PCB (length X width) mm 50×50~550×560 50×50~610×560
PCB (thickness) mm 0.3~4.5 (others available on request)
8mm feeder level 148 120
Power supply Three-phase 220/208/230/380/400/415VAC±5%. 50/60Hz
Gas supply 5.0bar (0.5MPa)-10bar (1.0MPa)
Machine size (length X width) mm 1900×2734 1500×2854 1500×2854
Machine weight 346Okg 2532kg 2482kg
