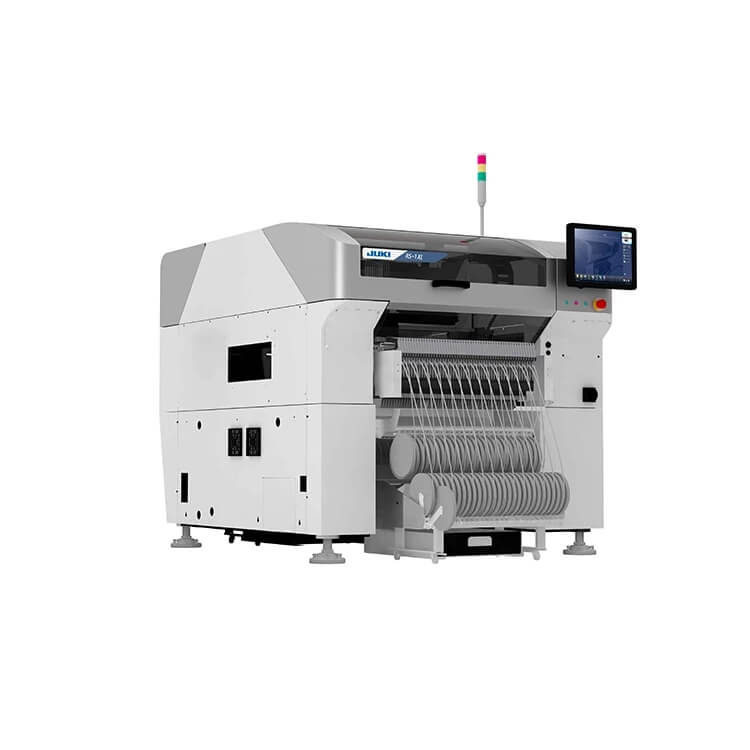

JUKI RS-1XL Pick and Place Machine

Speed:42000CPH
PCB Size : 650×560㎜
Feeder input:112pcs
Weight: 1850KG
Product description: JUKI RS-1XL Pick and Place Machine, Speed:42000CPH, PCB Size : 650×560㎜, Feeder input:112pcs, Weight: 1850KG
INQUIRY

JUKI RS-1XL Pick and Place Machine

Specifications:

"Takumi head" that automatically optimizes it's height between 6 different positions based on component height. Tact time is optimized by keeping the head as close to the PCB as possible for the components placed.

RS-1 supports components from 0201*¹(metric) up to 74mm square or 50×150 retangular

parts. Component height up to 25mm.

●Component polarity is detected and corrected automatically

by the upward looking centering camera (VCS).

●Upside down components

Special algorithms can detect components that are upside down

and reject them.

●Small component handling

Components down to 0201 (metric) are supported with the 10mm

field of view camera option.

The auto tape advance funciton reduces setup time by using the fiducial camera to

advance new tapes to the first full pocket. Available for 8mm tape and components from

0402 (metric) to 3216.

Maximum speed of up to 42,000 cph*. This is made possible by a revolutionary head design that reduces the travel time and distance for every placement.

JUKI laser technology realizes highly accurate placement of diffusion lens by recognizing the main orientation.

Independent control of head units Z axis achieves precise placement of large diffusion lens, avoiding interference from other nozzles.

Changing the RS-1 functionality does not require head replacement. The revolutionary design adapts to the production requirements automatically. It can be used in-line with high speed chip placement machines to improve overall line productivity or to make the line more flexible for complex PCBs with a high number of large components.

Model		RS-1XL
Board size		50×50 ㎜～ 650×560 ㎜
Component height		25 ㎜
Component size		0201 (0.250×0.125 ㎜ )* ¹ ~□74 ㎜ /150×50 ㎜
Placement speed	Optimum	42,000CPH
	IPC9850	29,000CPH
Placement accuracy		±35μm (Cpk≧1)
Feeder inputs		Max. 112*²
Power supply		AC200 ～ 415V*³ .3-phases
Apparent power		22 kVA
Operating air pressure		0.5±0.05 Mpa
Air consumption		200L / min
Machine dimensions (W×D×H)*⁴		2,109×2,000×1,440 ㎜
Mass (approximately)		1,850 kg

*1 For metric 0201 compliance please contact us.

*2 Using RF (RF08AS) feeders.

*3 A transformer unit (option) is necessary except AC 200 V.

*4 D dimension does not include the front operation monitor. H dimension does not include signal tower.

Option

Recognitions system	10 / 27/ 54 mm view camera
Oparations system	Rear-side operation unit / keyboard (front only)
Inspection function	Coplanarity sensor / Component Verification System (CVS)
Conveyor	Conveyor extention / Support pin / Support sponge
Electrical protection	CE compatible specification / Ground-fault interrupter
Force Control	Force control unit / Force control nozzle
Software	JaNets / IFS-NX / Flexline CAD
Component handling and feeders	Feeder Trolley (RF feeder only / RF-EF dual servo⁵) / Electric tape feeder (RF/EF⁵) / EF feeder adapter⁷ / Electric stick feeder⁵ (Type-N / Type-W) / Matrix tray server TR8SR , TR5SNX , TR5DNX / Matrix tray changer TR6DXLX / Dual tray server TR1RB / Tray Holder / IC collection belt / Tape reel mounting base (for RF/ for EF) / Splicing jig / Electric Trolley Power Station PW02*⁶
Others	Nozzle (for RS-1) / Bigfoot / Offset placement after solder screen-printing Solder lighting/ Non stop operation / Vacuum Pump

*5 When EF feeders adapt the an attachment of EF feeder, the EF feeder can use on RF/EF feeder trolley and fixed bank (rear side). Please inquire details.

*6 Separate connection cables for each model are required.
