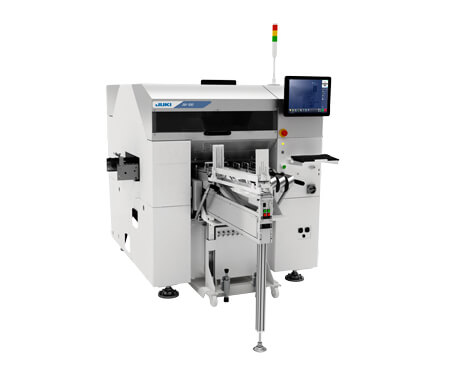

JUKI JM-100 Hybrid Placement Machine

JUKI JM-100 Hybrid Placement Machine

  • Board size 410×360mm
  • Component Size: 0603~50mm
  • Placement Speed:16,000CPH
  • PCB Weight max.4kg
  • Product description: JUKI JM-100 Multi Task Platform Hybrid Placement Machine, Board size 410×360mm, Component Size: 0603~50mm, Placement Speed:16,000CPH, PCB Weight max.4kg
  • INQUIRY

JUKI JM-100 Hybrid Placement Machine

Description:

JUKI JM-100 Hybrid Placement Machine

Advancing versatility, quality and speed

Best in class speed.
Component insertion time down to 0.6 seconds for vacuum nozzle and 0.8 seconds for gripper nozzle.
New "Takumi head" with multiple recognition heights
Component Feeding
Line control using JaNets software

Multi Task Platform JM-100

L size board

Board size

410×360mm

PCB Weight

max.4kg

Component height

max30mm

Component Size

Laser recognition

060350mm

Vision recognition

3mm50mm

Insertion Speed
Insertion components

Vacuum*2

0.6sec/part*1*3*4

grip

0.8sec/part*2*3*4

Placement Speed
(SMT

Chip ( Optimum

16,000CPH*3*4

Placement Accuracy
(SMT

Laser recognition

±0.05mm

Vision recognition*1

±0.04mm

* 1 Specification conditions
(Applicable part: Aluminum electrolytic capacitor (φ 8 mm), Feeder: two MRF-S, Placement conditions: Simultaneous pick, sequential insertions using 2 nozzles)
* 2 Specification conditions
(Applicable part: Connector (4 pin), Insertion conditions: 2 sequential picks and insertions using 2 nozzles)
* 3 Board transfer and mark recognition time not included.
* 4 When the part height is 16 mm.
