  • JUKI FX-1R Pick and Place Machine

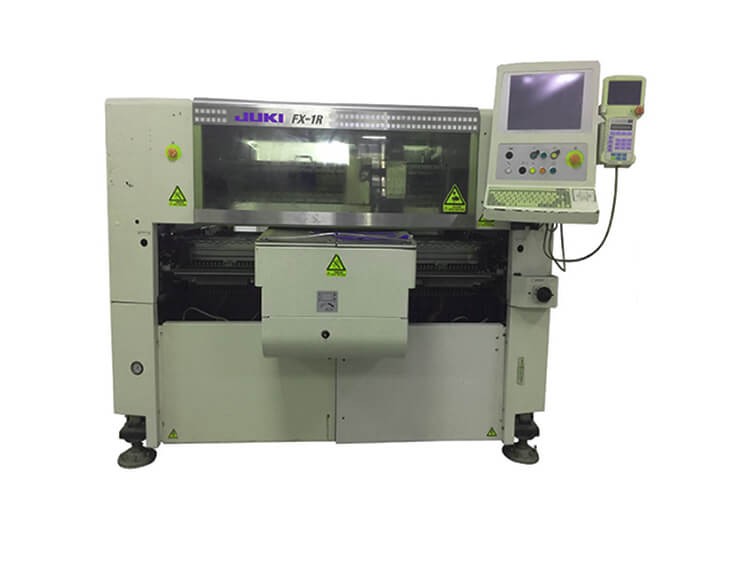

JUKI FX-1R Pick and Place Machine

JUKI FX-1R Pick and Place Machine

  • JUKI FX-1R Pick and Place Machine
  • Chip piece: 25000cph
  • Machine size: 1,880×1,731×1,490mm
  • Weight: about 2000kg
  • Product description: JUKI FX-1R Pick and Place Machine , Chip piece: 25000cph, Machine size: 1,880×1,731×1,490mm, Weight: about 2000kg

JUKI FX-1R Pick and Place Machine


JUKI FX-1R Pick and Place Machine

JUKI FX-1R Specification and price|JUKI FX-1R Machine

It depends on the working status of juki fx-1r pick and place machine.

The High-speed Modular Mounter FX-1R is a traditional modular chip

shooter driven at extreme speeds.  Refinements in the drive system
deliver real world improvements in actual throughput.
For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.
JUKI fx-1r Mounter Features:
JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique
hi-drive mechanism for high-speed placement.
Inherited the traditional concept of modular placement machine,
and realized a high-speed placement of the placement machine.
Reasonably adjust all parts and improve the actual mounting speed.

JUKI Mounter fx-1r parameters:
Board size: 410*360mm
Component height: 6mm
33,000CPH:chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 (0201) to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Component placement speed:chip:33000cph (best condition)
Chip piece: 25000cph (ipc9850)
Component placement accuracy: ±0.05mm
Component placement type: up to 80 types
Power supply: three-phase ac200~415v
Rated power: 3kva
Air pressure: 0.5±0.05mpa
Machine size: 1,880×1,731×1,490mm

Weight: about 2000kg


JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
