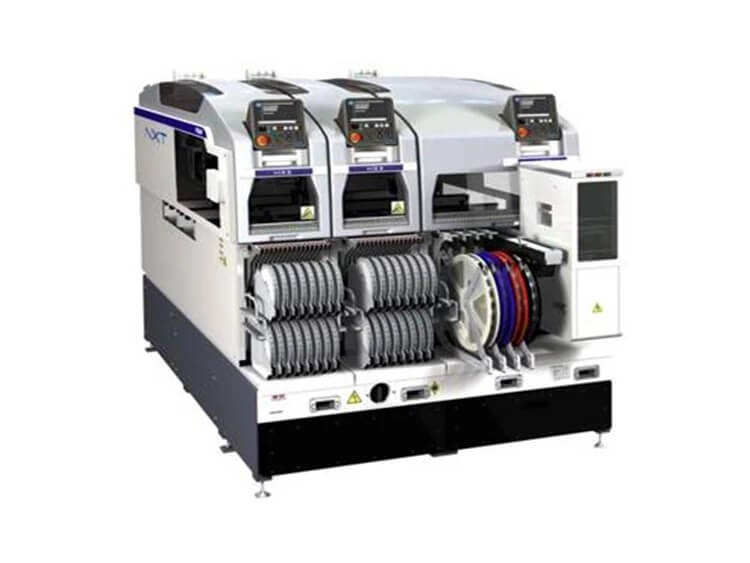

FUJI NXT M6 Ⅱ Pick and Place Machine
Description:
FUJI NXT M6 Ⅱ Pick and Place Machine
M3 II / M6 II: 48mm x 48mm ~ 510mm x 534mm (double handling rail)
48mm x 48mm ~ 610mm x 534mm (single transport track)
M6 IISP: 48mm x 48mm ~ 510mm x 520mm (double handling rail)
48mm x 48mm ~ 610mm x 520mm (single handling track)
Component Type:
M3 II: MAX 20 (8mm tape conversion)
M6 II / M6 IISP: MAX 45 (8mm tape conversion)
Mounting accuracy:
H12S / H08 / H04 / OF: ± 0.05mm (3 sigma) cpk≥1.00
H01 / H02 / G04: ± 0.03mm (3 sigma) cpk≥1.00
GL: ± 0.10mm (3 sigma) cpk≥1.00
Production capacity:
H04: 6,500 cph; H01: 4,200 cph; G04: 6,800 cph; OF: M3 II not mountable /
M6 II 3000 cph; GL: 16,363 dph (0.22 sec / dot))
H04: 6,000 cph; H01: 3,500 cph; G04: 5,100 cph; OF: 2,800 cph,
GL: 16,363 dph (0.22 sec / dot))
Object components:
H12S: 0402 ~ 7.5mm x 7.5mm high: MAX 3.0mm
H08: 0402 ~ 12mm x 12mm high: MAX 6.5mm
H04: 1608 ~ 38mm x 38mm high: MAX13mm
H01 / H02 / OF: 1608 to 74 mm × 74 mm (32 mm × 180 mm) Height: MAX 25.4 mm
G04: 0402 ~ 15.0mm x 15.0mm high: MAX 6.5mm
Component Supply:
Smart feeder: corresponding to 8,12,16,24,32,44,56,72,88 mm width of the tape
Material feeder: 4≤ element width≤15mm (6≤ tube width≤18mm),
15≤ element width≤32mm (18≤ tube width≤36mm)
Tray unit: 135.9X322.6mm (JEDEC standard) (Tray unit M), 276X330mm, 138X330mm (Tray unit LT)
Machine size:
2MII Base: 740 (L) x 1934 (W)
4M II Base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
