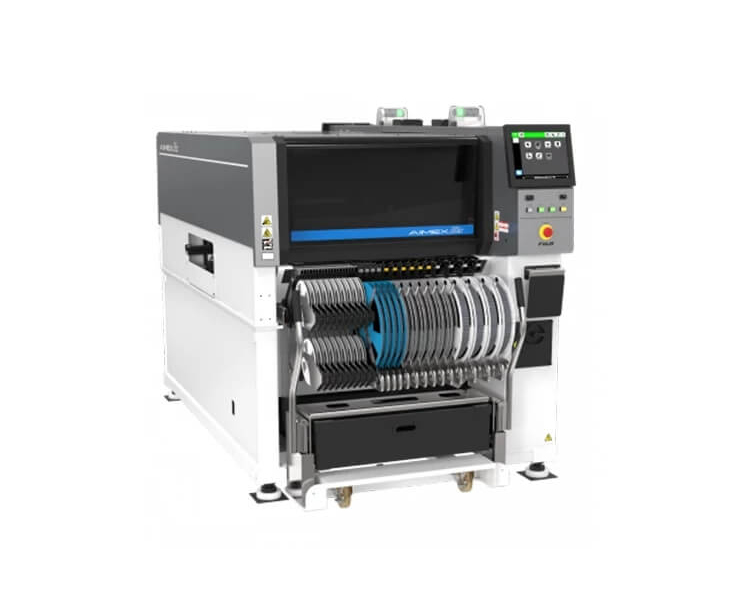

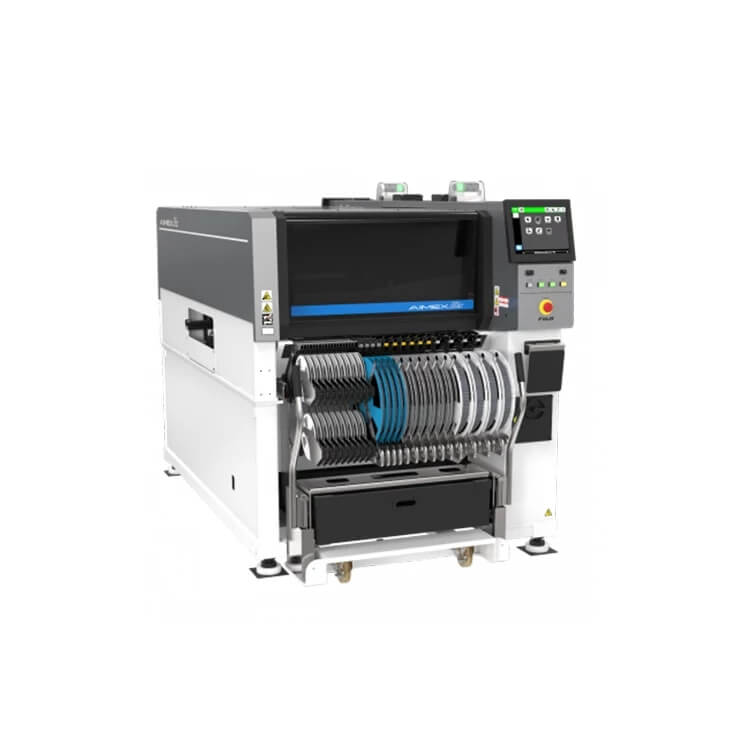

FUJI AIMEX III Pick and Place Machine

FUJI AIMEX III Pick and Place Machine

  • Place Accuracy:+/-0.025 mm
  • Board size:774 x 610 mm
  • Feeder inputs:max.130 8mm
  • Dimension: L: 1280mm, W: 2656mm, H: 1556mm
  • Product description: FUJI AIMEX III Pick and Place Machine, Place Accuracy:+/-0.025 mm, Board size:774 x 610 mm, Feeder inputs:max.130 8mm, Dimension: L: 1280mm, W: 2656mm, H: 1556mm
  • INQUIRY

FUJI AIMEX III Pick and Place Machine

Specifications:



FUJI AIMEX III Pick and Place Machine

High speed FUJI SMT machine, FUJI pick and place machine, FUJI placement, better price welcome for details.

The AIMEX III is designed for component flexibility, PCB flexibility and production flexibility.
1. Production for Large Panels or Simultaneous Production of Two Models
The AIMEX III can support large panels up to 774 (L) x 710 (W) mm in size.
Simultaneous production of two different products is possible using our dual conveyor configuration machine. The AIMEX III also enables various production methods and supports a wide range of panel sizes.
2. Supporting 0402 (01005") to 74 x 74 mm with one head
Our DX head exchanges the dedicated tool in one action depending on the part size, from small chips to large odd-form parts. Also, using wide range nozzles together provides further efficient placement.
3. DynaHead Dynamic Exchange
The AIMEX III offers dynamic exchange during production to the best tool for the job. Borderless production is made possible using the DynaHead to dynamically exchange between 12-nozzle, 4-nozzle and single nozzle tools.
4. Minimizing the changeover count
Changeover time can be reduced by performing MFU batch changeover and by the machine having up to 130 slots for feeders which makes it possible to load all of the required parts.
5. Ramping up production smoothly
Automatic data creation and on-machine editing using a large touchscreen panel work to support ramping up new production and quick response to sudden changes to programs.

Specification of FUJI Placement Machine
Basic Specifications
PCB size(LXW)
48 x 48 mm to 774 x 610 mm (double conveyor)*
48 x 48 mm to 774 x 710 mm (single conveyor)
*Double conveyors can handle PCBs up to 330 (W) mm. PCBs larger than 330 (W) mm must be produced by changing the double conveyor to single lane production mode.
Feeder capacity
Up to 130 (8 mm tape)
Placing accuracy
(Fiducial mark based referencing)
H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00
H08M: +/-0.040 mm (3σ) cpk≥1.00
OF: +/-0.050 mm (3σ) cpk≥1.00
H02F: +/-0.025 mm (3σ) cpk≥1.00
H01: +/-0.030 mm (3σ) cpk≥1.00
Machine dimensions
L: 1280mm, W: 2656mm, H: 1556mm

Placing heads

H24G
H08M H02F
H01
OF
Nozzle quantity
24 8 2 1 1
Throughput(cph)
37,000 cph (Productivity priority mode, under development)
35,000 cph (Standard mode)
13000 7300 4200 3000
Part size (mm)
03015 mm to 5 x 5
Height:Up to 2.0 mm
0603 (0201")to45 x 45
Height:Up to 13.0 mm
1608 (0603")to 74 x 74 (32 x 180)
Height:Up to 25.4 mm
1608 (0603")to 74 x 74 (32 x 180)
Height:Up to 38.1 mm
Part presence check

○ (H08MQ)

x

Parts supply

Tape





Stick
x



Tray
x



DynaHead(DX)
Nozzle quantity 12 4 1
Throughput(cph)
27,000
Parts presence function ON: 26,000
12000 5800
Part size (mm)
0402 (01005") to 12.5 mm diagonally and Y is 7.5 mm or less
Height: Up to 3.0 mm
1608 (0603")to 15 x 15
Height:Up to 6.5 mm
1608 (0603")to 74 x 74 (32 x 100)
Height:Up to 25.4 mm
Placing accuracy
(Fiducial mark based referencing)
+/-0.038 (+/-0.050) mm (3σ) cpk≥1.00 +/-0.040 mm (3σ) cpk≥1.00
+/-0.030 mm (3σ) cpk≥1.00
Part presence check
o
x
o
Parts supply
Tape
o
o
o
Stick
x
o
o
Tray
x
o
o

*Contact Fuji or sales agents for specific operating conditions and detailed specifications.
