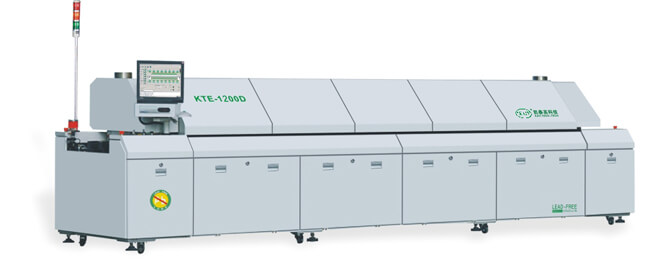

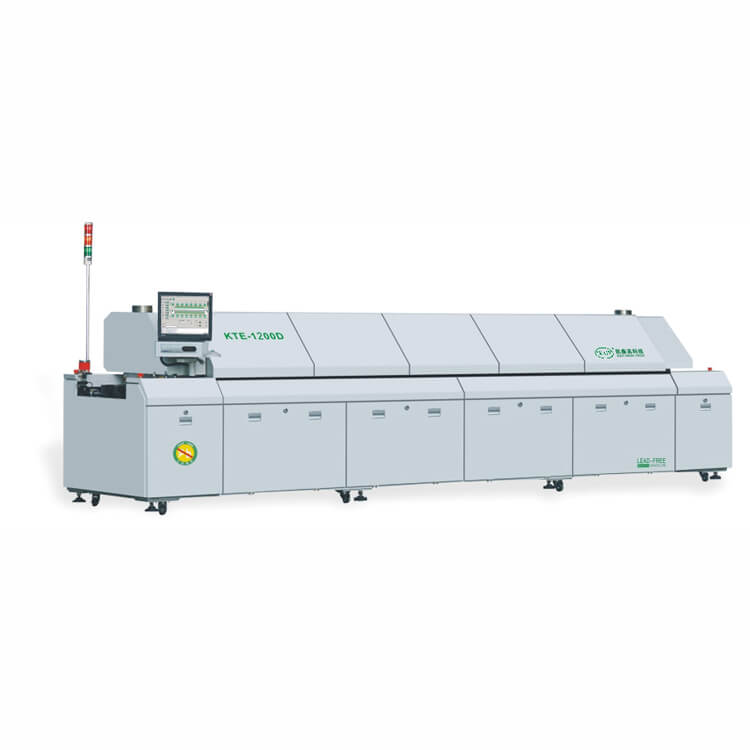

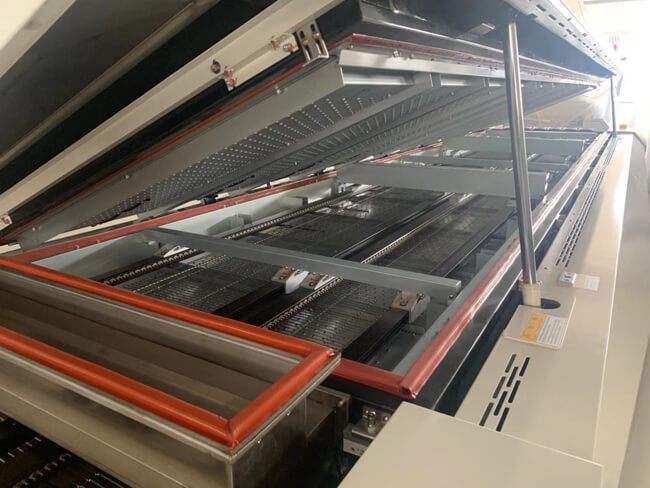

12 Zones Dual Rail SMT Reflow Oven KTE-1200D

Dual Rail Conveyor
12 heating zones
Weight Apprx.:3430KG
Dimension 6985*1539*1490mm
Product description: China 12 Zones Dual Rail SMT Reflow Oven KTE-1200D Manufacturer, Dual Rail Conveyor, 12 heating zones, Dimension 6985*1539*1490mm, Weight Apprx.:3430KG
INQUIRY

Specifications:

12 Zones Dual Rail SMT Reflow Oven KTE-1200D

Advantage:

1. Totally meet various requirements for the lead free processing.

2. WindowsXP operation system, Chinese/English can be swtiched online.

3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

*Machine Specification*
Model	KTE-1200-D	Control	Industrial computer
Heating zones qty.	Top 12, bottom 12	Cooling zones qty.	Top 2
Heating zone length	4675mm	Current plate structure	Galvanized plate
Weight	Apprx.:3430KG	Dimension	698515391490mm
Exhaust capacity	12㎡/min×2	Color	Grey
*Control system*
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	105KW	Temp. control accuracy	±1℃（static state）
Start power	46KW	Temp. control method	PID +SSR drive
Consumption power	12KW	PCB temperature deviation	±1.5℃
Speed control	Inverter adjust	Data save	All profiles can be saved
Warm up time	Apprx.30minute	Abnormal alarm	High, low temp. alarm
*Conveying system*
Rail structure	2 Sectional structure	Rail fixed method	1,4 fix 2,3 moving
Chain	Stuck-free type	Conveying height	900±20mm
PCB Max. width	50-400mm	Conveying method	Mesh+ chain
Component height	Top/bottom 25mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic
*Cooling system*
Cooling method	Forced air cooling
*Heating features*
Heating zones	Top 12,bottom 12（4675mm）can meet the need of the peak lead-free technique.
Cooling zones	After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time	From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence	Warm up from two side, save the power and time
Profile transfer time	＜15min
Heating zone temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Empty to full load heat balance respond time	≤20 s
