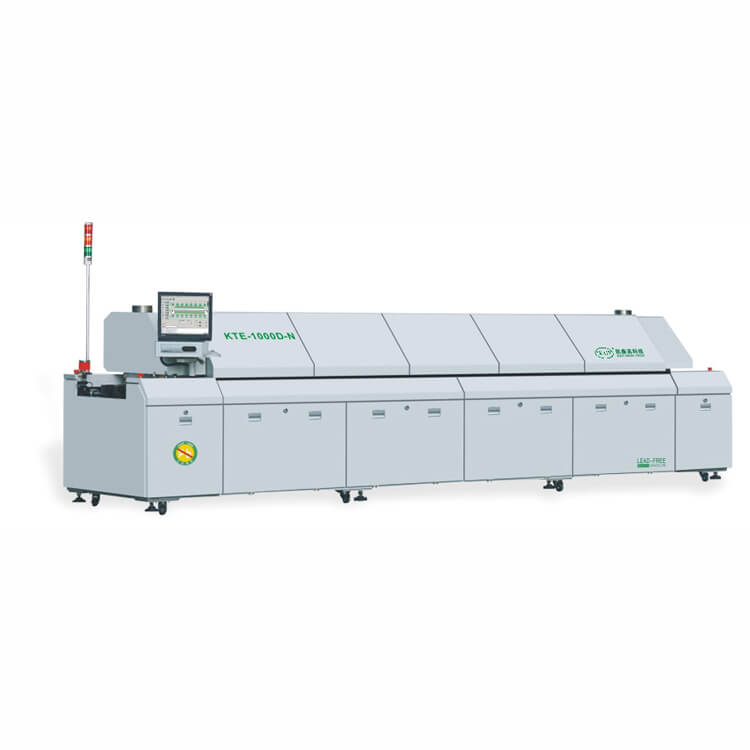

10 Zones Dual Rail Nitrogen SMT Reflow Oven KTE-1000D-N

Dual Rail Conveyor
Nitrogen soldering process
Weight APPROX:3050KG
Dimension 6160x1539x1490mm
Product description: 10 Zones Dual Rail Nitrogen SMT Reflow Oven KTE-1000D-N, Dual Rail Conveyor, Nitrogen soldering process, Dimension: 6160x1539x1490mm, Weight APPROX:3050KG
INQUIRY

Specifications:

10 Zones Dual Rail Nitrogen SMT Reflow Oven KTE-1000D-N

Features:

1. Totally meet various requirements for the lead free processing.

2. WindowsXP operation system, Chinese/English can be swtiched online.

3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.

4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.

5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.

6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.

7. Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.

8. The temperature inspection instrument constantly monitors the temperature of each temperature zone, ultra-high temperature protection, and automatically switch off the heating power

9. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.

10. The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.

Model	KTE-1000D-N	Control	Industrial computer
Heating zones qty.	Top 10, bottom 10	Cooling zones qty.	Top 2
Heating zone length	3892mm	Current plate structure	Galvanized plate
Weight	APPROX:3050KG	Dimension	6160x1539x1490mm
Exhaust capacity	10㎡/min×2	Color	Grey
*Nitrogen* *system*
With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system
Full Nitrogen system: Oxygen analyzer added on the N Standard
Nitrogen consumption Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr
N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr
*Control system*
Electricity supply	3P 380V/220V 50/60HZ	Temp. control range	Room temp.～300℃
Total power	86KW	Temp. control accuracy	±1℃（static state）
Start power	38KW	Temp. control method	PID +SSR drive
Consumption power	12KW	PCB temperature deviation	±1.5℃
Speed control	Inverter adjust	Data save	All profiles can be saved
Warm up time	Apprx.30minute	Abnormal alarm	High, low temp. alarm
*Conveying system*
Rail structure	2 Sectional structure	Rail fixed method	1,4 fix 2,3 moving
Chain	Stuck-free type	Conveying height	900±20mm
PCB Max. width	50-400mm	Conveying method	Mesh+ chain
Component height	Top/bottom 25mm	Conveying speed	300-2000mm
Conveying direction	Left to right	Lubrication	Automatic
*Cooling system*
Cooling method	Forced air cooling
*Heating features*
Heating zones	Top 10,bottom 10（3892mm）can meet the need of the peak lead-free technique.
Cooling zones	After cool down by air, PCB temp. is ≤70℃ at the exit.
Warm up time	From the normal temp. to set temp, approximate 30 minutes.
Warm up sequence	Warm up from two side, save the power and time
Profile transfer time	＜15min
Heating zone temp. control accuracy	±1℃
PCB temp. deviation	±1.5℃
Empty to full load heat balance respond time	≤20 s
