  • PCB loader PCB Buffer Stocker

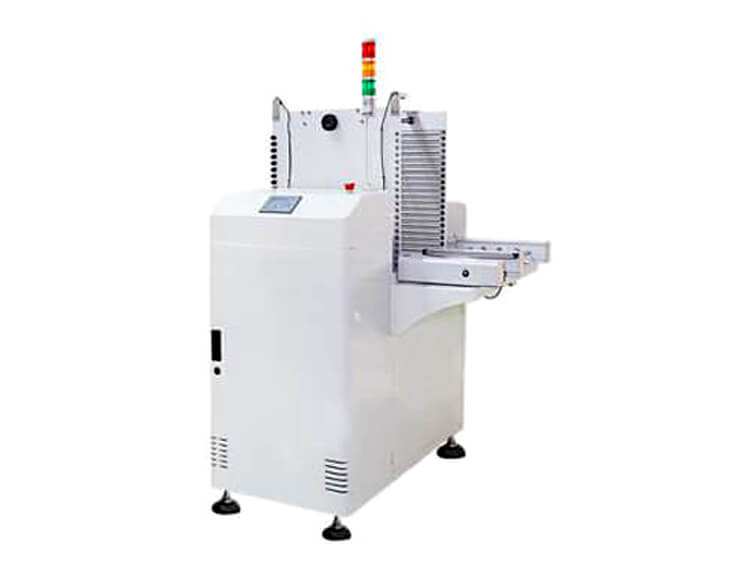

PCB loader PCB Buffer Stocker

PCB loader PCB Buffer Stocker

  • Demensions:600 x 1000 x 1600mm
  • PCB width:50-400mm
  • PCB Length:Max 460mm
  • Pitches:10,20,30mm
  • Product description: PCB loader PCB Buffer Stocker for SMT assembly line, Demensions:600 x 1000 x 1600mm, PCB width:50-400mm, PCB Length:Max 460mm, Pitches:10,20,30mm
  • INQUIRY

PCB loader PCB Buffer Stocker

Introduce:



PCB loader PCB Buffer Stocker

The Buffer Loader can be used as a mid-line loader or unloader, as a LIFO and FIFO buffer between SMD assembly,  Connect with SMT and AI productions line. Straight-through may be selected so that PCB is conveyed by it, or Automatic may be selected so that this machine is used as a PCB buffer loader. (Automatic or Straight-through may be selected for this machine. When Automatic is selected and if the preceding machine is turning out PCB too fast but the following machine is feeding PCB too slowly, more PCB will be stored in this machine and sent out as long as the following machine needs it; When Straight-through is selected, this machine will be used as a conveying table.)

Features

1. Servo motor, PLC Control system, HMI control panel.

2. 3 operative modes: FIFO buffer, LIFO buffer, pass through.

3. 24pcs PCBs can be stored temporarily, width adjustable.

4.  Direction from left to right or right to left(optional).

5. SMEMA compliant.

Specifications

Model

BL-800B

Power

AC 110/220V ±10V,  50/60HZ

PCB Width

50 - 400mm(other specification on request)

PCB Length

Max. 460mm(other specification on request)

Buffer capacity

Max. 24 PCBs at pitch 10mm

Transport Height

900 ±20mm

PCB Direction

left to right (option: right to left)

Pitches

10,20,30mm

Machine Dimension

600 x 1000 x 1600mm
