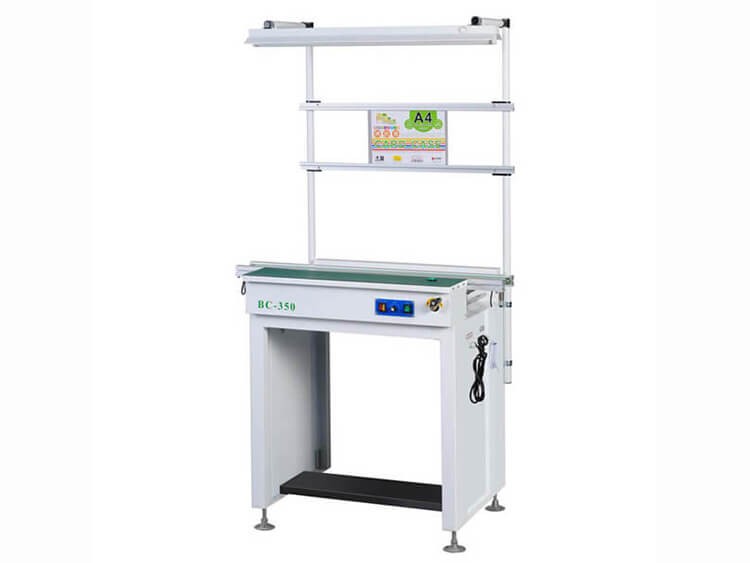

PCB Conveyor for LED Production Line SMT Assembly Line

PCB Conveyor for LED Production Line SMT Assembly Line

  • Weight Approx.55Kg-85kg
  • PCB Width: 50 to 350 mm
  • Application: SMT PCB Assembly Production
  • Power Supply: 1 PH AC 220V 50/60Hz
  • Product description: PCB Conveyor for LED Production Line SMT Assembly Line, used between 2 SMT machines, SMEMA interface
  • INQUIRY

High Quality PCB conveyor for LED Production Line smt assembly line


Features:



1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

Brand

Flason

Model

BC-350

Outer Dimension

500*700*940mm-1500*700*940mm

PCB Width

50~350mm

PCB Direction

L to R or R to L

Speed

0-2000 mm/min

Motor

1P AC220V 50/60HZ 15W

Power Supply

1P AC220V 50/60HZ

Rail length

up to your request

Control System

PLC

Foot switch

standard

Lighting

Option

SOP Rack

Option

Platform material

ESD Rubber Mat

Communication plug

SMEMA Signal plug for up & down line

Weight

Approx.55Kg-85kg

7. Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.

Specification:


Parts List

Name

Brand

Motor drive

VTV

Gear box

VTV

Speed controller

VTV

Bearing

NSK   Japan

Photoelectronic switch

SICK Germany

Width adjustment

Stainless   Steel ball screw

Transmission shaft

Six stainless steel angle

Structure

Aluminum frame


Keywords:

SMT Conveyor, PCB conveyor, SMT PCB conveyor, SMT assembly conveyor,PCB assembly conveyor, SMT assembly line conveyor, PCB assembly line conveyor, SMT production line conveyor, PCB production line conveyor, LED PCB conveyor, LED production line conveyor, LED assembly line conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, THT wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com



FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
