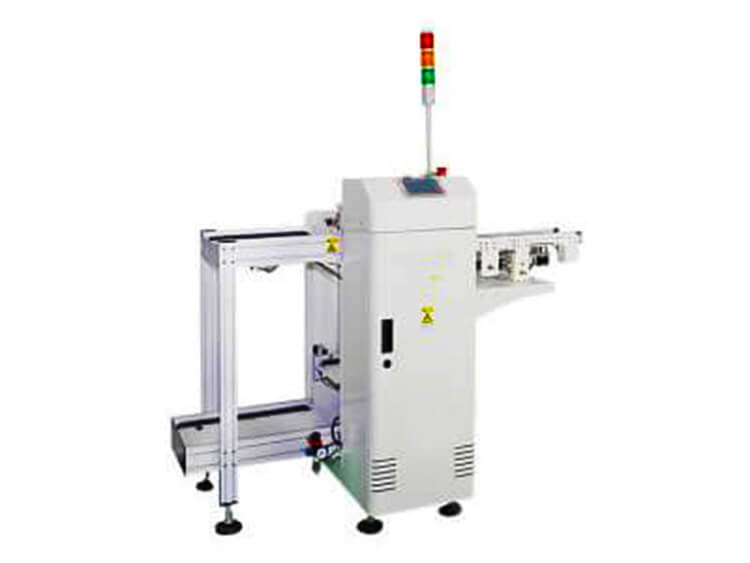

SMT PCB Loader

Demensions:500 x 800 x 1160mm
PCB size: 50x50 - 400x350mm
SMEMA compliant
Width adjustment manually
Product description: SMT PCB Loader, Demensions:500 x 800 x 1160mm, PCB size: 50x50 - 400x350mm, SMEMA compliant, Width adjustment manually
INQUIRY

SMT PCB Loader

Product features:

Micro computer controlled component ensures machine’s stable and reliable running.

Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

Main functions and Parameter
Model#		Automatic Loader
Item	Name	Description
1	Automatic Loader	Dimensions: 1450(L)×680(W)×1650(H)mm
		Special Aluminum alloy guide rails and rubber belt
		3 Magazine lifting with screw rod by 90WSPG electric-brake motor
		4 Pneumatic PCB clamping structure
		5 Magazine dimensions: 300(W)×340(L)×570(H)mm
		6 PCB size: 60(W)×60(L)mm--250(W)×300(L)mm
		7 Direction: L-R/ R-L
		8 Adjustable Lifting distance:10,20,30,40 and 50mm
		9 Programmable Siemens PLC and controller
		10 PCB Automatic loading to conveyor
		11 Touch Panel controlled interface/Buttons interface
		12 Working power 0.25KW
		13 Power Source: 220v 50HZ
		14 Air Source: 4-6MPa
