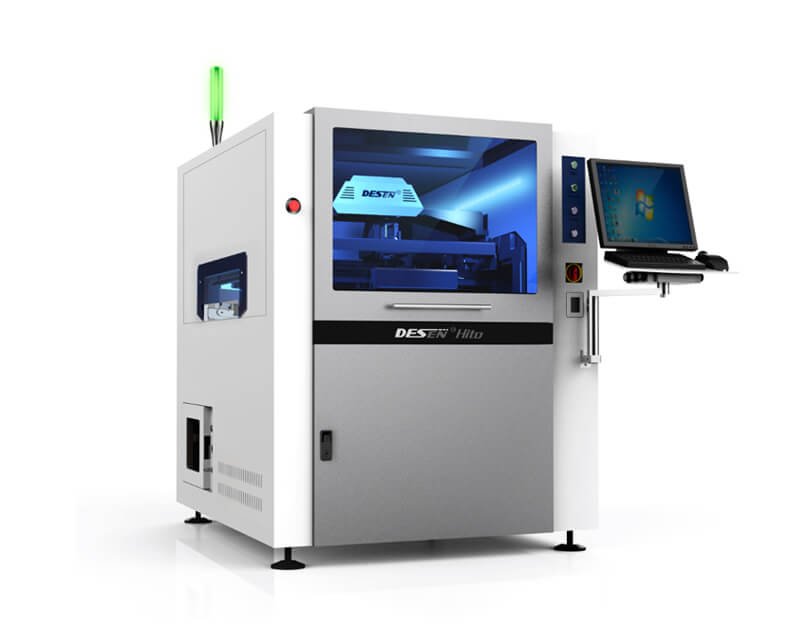

Automatic SMT Stencil Printer

Max PCB: 460*340mm
PCB weight ≤3kg
Cycling time 7s
Weight:1000Kg
Product description: Automatic Online SMT Stencil Printer, Max PCB: 460*340mm, PCB weight ≤3kg, Cycling time 7s, Weight:1000Kg
INQUIRY

Automatic SMT Stencil Printer

Products description

Milestone, high precision customized product

Product features:

The whole machine is fully controlled by servo system；

Automatic pressure feedback system；

Multifunctional image processing system；

Precise PCB transportation system；

Intelligent PCB holding device；

Automatic steel mesh positioning module；

Automatic and effective steel mesh cleaning system；

User-friendly operation interface；

Specification ：
High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~460mm x 340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

Precision	printing precision	≥2 Cpk@±18μm@,6σ
	Repeat printing	≥2 Cpk@±8μm@,6σ
	Cycling time	7s
Screen frame	creen frame dimension	470370mm-737737mm
	Screen frame fixation	air cylinder
	Screen frame adjustment	automatic
Platform	platform adjustment range	X:±4mm Y:±6mm
Platform	Platform adjustment angle	Z:±2°
PCB	printing size	standard:Min5050mm Max460340mm(optiona:510*340mm)
	PCB thickness	0.4mm-5mm
	PCB weight	≤3kg
	PCB warping	maximum warping7mm（including base plate）
Transmission	transmission direction	L→R,L→L，R→L，R→R
	Transmission speed	100-1500mm/s programmable adjustment
	Transmission width	50-340mm
Demould	Demould method	First use scraper, then demould, demould then use scraper, maintain pre-pressure for demould (surface demould, line demould) ning system
	Demould speed	0.1-20mm/s
	Speed distance	0mm-3mm
Work condition	Voltage requirement	220V，±10%，Single-phase 50/60Hz。
	Power	3kw
	Air pressure	0.45-0.6MPa
	Gas consumption	0.5ml/s
Safety performance	insulation resistance	1KV/3MΩ
	Ground resistance	≤0.1Ω
	Operation noise	≤87dB
