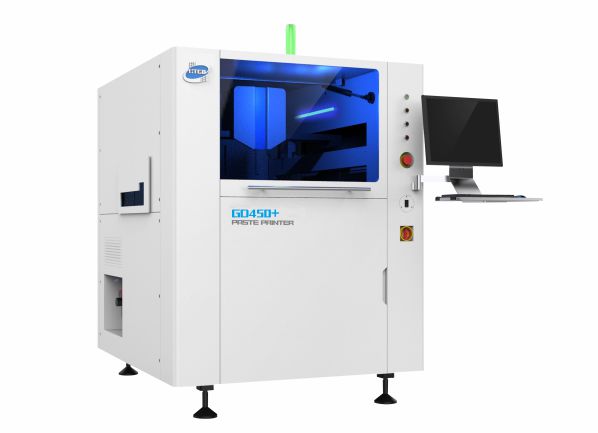

Automatic Solder paste printer GD450+

Max PCB size (X x Y) 450mm x 350mm
Voltage: 220V
Dimension L（1140mm）x W（1400mm）xH（1480mm)
Weight:1000Kg
Product description: Automatic Solder paste printer GD450+, Max PCB size (X x Y) 450mm x 350mm, Voltage: 220V, Dimension L（1140mm）x W（1400mm）xH（1480mm), Weight:1000Kg
INQUIRY

Automatic Solder paste printer GD450+

Products description

Full Automatic Online SMT solder paste Stencil printer GD450+,Sold big amount in the Market, Good quality is already certificated.

GD450+™ Specificataion
PCB Parameter
Max PCB size (X x Y)	450mm x 350mm
Min PCB size (Y x X)	50mm x 50mm
PCB Thickness	0.4mm~14mm
Warpage	Max. PCB Diagonal 1%
Max PCB weight	10Kg
PCB margin gap	3 mm(conveyor belt PCB/frame touching width)
Max bottom gap	15mm
Conveyor Speed	1500mm/s(Max)
Converyor height	900±40mm
Conveyor direction	L – R、R – L、L – L、R – R
Conveyor method	Single rail
PCB fixing method	Software adjustable pressure elastic side pressure (options: 1, bottom holistic suction vacuum;2, bottom multi-point area vacuum; 3, edge locking substrate clamping)
PCB support Method	Magnetic thimble,equal high block,vacuum suction cavity（option：Grid-Lok）
Printing Parameter
Printing head	Linear motor type close loop printing head
Stencil frame size	370mm x 470mm~737 mm x 737 mm
Max printing area (X x Y)	450mm x 350mm
scraper type	steel scraper/rubber scraper(45°/55°/60)
scraper length	220mm~500mm
scraper height	65±1mm
scraper thickness	0.25mm Diamond-like carbon coating
Printing method	Single or dual scraper
Mould release length	0.02 mm 至 12 mm
Printing	0 ~ 200 mm/s
Printing Pressure	0.5kg -10Kg
Printing length	±250 mm(from center)
Cleaning system
Cleaning method Vacuum Dry Cleaning-Vacuum Wet Cleaning-Dry Cleaning (Programming Control)
Cleaning direction forth-back,Back and forth cleaning (programmed control)
Camera Parameter
Imaging area (FOV)	6.4mm x 4.8mm
Platform adjustment range	X,Y:±7.0mm,θ:±2.0°.
Datum point type	Standard shape reference point (see SMEMA standard), pad/hole
Camera System	Single camera, up/down single imaging vision system, geometric matching positioning
Function Parameter
Repetitive accuracy of image calibration	±10.0um @6 σ，Cp more than 2.0
Printing Repetition Accuracy	±20.0um @6 σ，Cp more than 2.0
Cycle time	Less than 7s
Product changing time	Less than 5 mins
Equipment
Power Supply	AC220V±10%,50/60HZ,15A
Air supply	4~6Kg/cm2, 10.0mm tube
Operation System	Windows XP
Dimension	L（1140mm）x W（1400mm）xH（1480mm）
Weight	1000Kg
Temperature humidity control system（Option）
Temperature Control Range	23±3℃
Humidity Control Range	45～70%RH4
