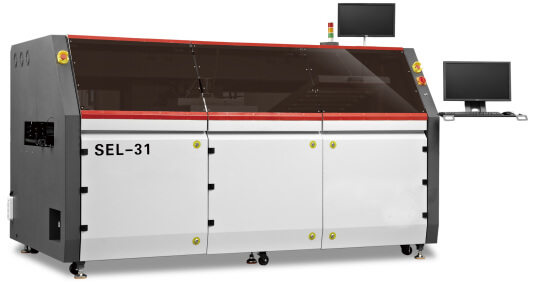

China Selective Wave Soldering Machine Manufacturer

China Selective Wave Soldering Machine Manufacturer

  • max solder temperature 350℃
  • solder pot capacity 15 KG
  • dimension L1280mm X W1400mm X H1650mm
  • Net weight 380KG
  • Product description: China Selective Wave Soldering Machine Manufacturer-Good Price! Good Quality! Good Service!
  • INQUIRY

China Selective wave soldering machine Manufacturer

Products description



Advantageous:

(1) Double head spray and welding, greatly improve production efficiency.

(2) PCB plate fixed, spray and welding platform moving.

(3)  High welding quality, greatly improve the pass rate of welding.

(4) Modular design of SMEMA online transportation, support customers for flexible line formation.

(5) Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.

Standard machine include:

Serial

Item

content

Quantity

1

Controlling system

PC & monitor

1 set

Live on monitor camera

motion control

2

Platform motion system

(Flux Spray

xy motion table

1 set

2 axis equipped with ball screw & linear guild rail

2 axis equipped with servo motor & driver

3

Fluxing system

Imported fluxing jetting valve

1 set

flux tank

flux pneumatic system

Nozzle automatic cleaning system

4

preheating system

Preheat the hot air,IR heater at bottom

1 set

5

Platform motion system

(Solder pot

xyz motion table

1 set

3 axis equipped with ball screw & linear guild rail

3 axis equipped with servo motor & driver

6

Soldering pot

15kg capacity solder pot, impeller, tunnel, servor motor

2 set

solder temperature over heat alarm system

solder temperature controlling system

n2 inline heating system

Standard equipped solder nozzleinner 4mm x 3pcs, 5mm,6mm )

7

Conveyor system

Independent step drive of front and rear transport guide rail (spray preheating section)

1 set

Front and rear chain transportation guide (spray preheating section)

Spray section of PCB plate blocking device, preheating section

Independent step drive of front and rear transport guide rail (tin soldering  section)

Front and rear roller transport guide (tin soldering  section)

PCB plate blocking device tin soldering  section

side clamping system

8

Machine chassis

machine frame/cover & painting

1 set


1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

smt wave soldering machine,smt soldering oven, THT soldering machine, SMT soldering machine, smt assembly linedual wave soldering machine, PCB soldering machine, SMT assembly machine, PCB soldering dual wave machine, LED wave soldering machine, LED PCB wave soldering machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
