  • Product description: lead-free soldering paste Sn96.5Ag3Cu0.5
  • INQUIRY

lead-free soldering paste Sn96.5Ag3Cu0.5

Products description



lead-free soldering paste Sn96.5Ag3Cu0.5 tin soldertin solder paste flux solder paste

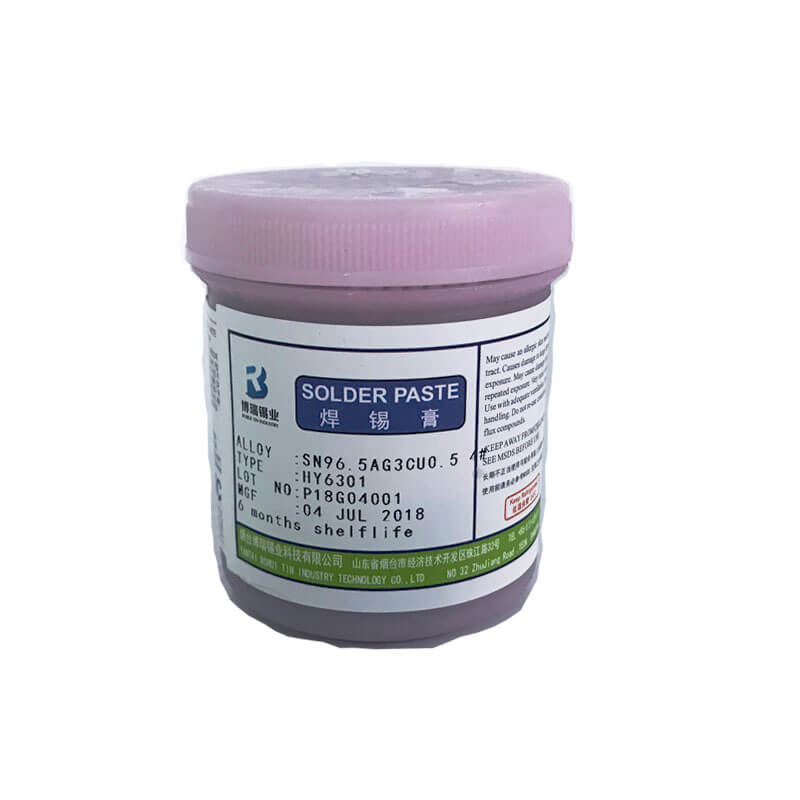

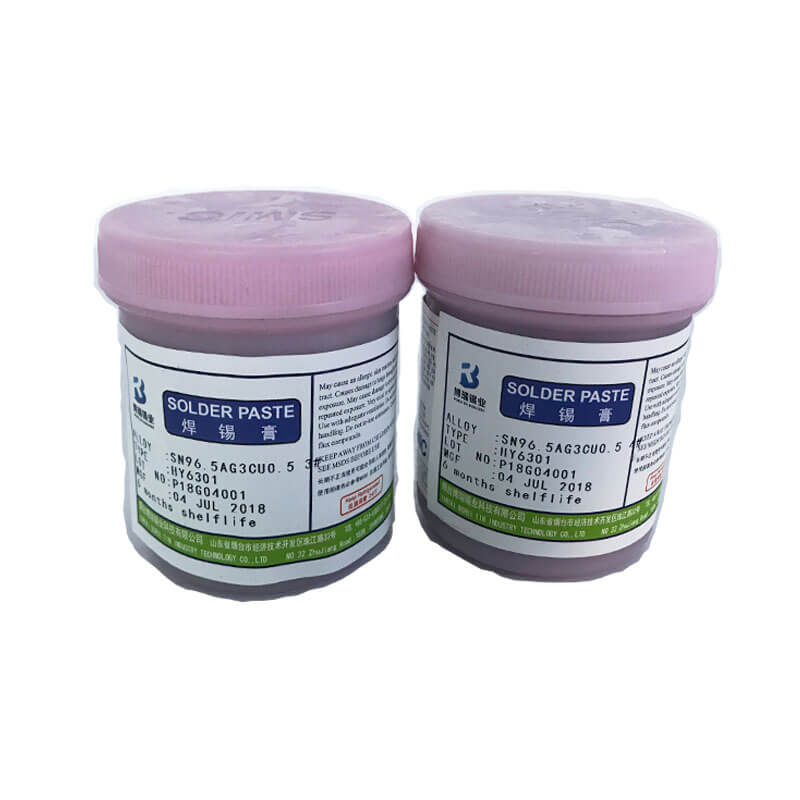

P-Sn99Ag0.3Cu0.7-4.jpg Brands Flason
Name Lead-free solder paste
Alloy Sn96.5Ag3Cu0.5
Package 500g/bottle
Melting point 138℃
Particles 3# 25 - 45μm(custom made)
Particles 4# 20 - 38μm(custom made)
Working environment 25±5℃


Product Parameters

Description Alloy Composition FLUX Solidus℃ IPC
Lead solder paste SN50/PB50 183 3# 4# No cleaning LED field
SN55/PB45 183 3# 4# No cleaning LED field
SN60/PB40 183 3# 4# Lead Containment PCB Reflow
SN60/PB40 80.00% 183 3# Reflow soldering of stainless steel, aluminum, copper, iron, common metal alloys
SN63/PB37 90.00% 183 3# 4# Lead Containment PCB Reflow
SN42/BI58 90.00% 138 3# 4# Low temperature reflow soldering
Lead-free solder paste SN99/AG0.3/CU0.7 88.50% 221 3# 4# Lead-free Containment PCB Reflow
SN99/AG0.3/CU0.7 88.50% 221 3# 4# Halogen-free, no-clean, good wetting, suitable for precision PCB soldering
SN96.5/AG3/CU0.5 88.50% 217 3# 4# Lead-free Containment PCB Reflow
SN96.5/AG3/CU0.5 88.50% 217 3# 4# Zero Halogen No-Clean, Good Wet Moisture Suitable for High-Precision PCB Reflow Soldering



Solder paste grades

There are various grades of solder paste and the required type can be selected to fit in with the PCB assembly process used. The solder paste is graded according to the size of the small solder balls. As they cannot be exactly graded, the different types have a band of solder ball sizes between which 80% of the minute solder balls fall.

IPC TYPE DESIGNATION PARTICLE SIZE (ΜM) *
Type 1 75 - 150
Type 2 45 - 75
Type 3 25 - 45
Type 4 20 - 38
Type 5 10 - 25
Type 6 5 - 15
Type 7 2 - 11
Type 8 2 - 8

* 80% minimum between the stated sizes

Solder can also be categorised according to the type of flux used:

  • Rosin based solder pastes: Rosin based pastes are made of rosin, a natural extract from pine trees. These fluxes can be cleaned if required after the soldering process using a solvent (potentially including chlorofluorocarbons).
  • Water soluble flux based solder pastes : Water-soluble fluxes are made up of organic materials and glycol bases. There is a wide variety of cleaning agents for these fluxes.
  • No clean solder paste: A no-clean flux is made with resins and various levels of solid residues. No-clean pastes save not only cleaning costs, but also capital expenditures and floor space. Although the no-clean flux based solder pastes sound attractive, they need a very clean assembly environment and may need an inert reflow environment.

Solder paste storage

In order to ensure that the solder paste is suitable for proving the highest performance for PCB assembly it is necessary to ensure that it maintains the required properties. To achieve this it is imperative that the solder paste is stored correctly. It should always be stored in an airtight container to prevent oxidation. The very large surface area of the minute solder spheres, means that oxidation can present a very great problem.

Additionally, the solder must be stored at low temperatures. Not only does this reduce the rate of any oxidation there may be, but it also reduces the rate at which the flux degrades. While a low temperature is imperative, it should not be stored at a temperature below freezing.

In view of the way in which solder paste can degrade, it also has a defined shelf life and it should not be used after its end date. If old solder paste is used there is a distinct risk of a much higher defect rate, and the cost of any rework incurred would be well beyond the cost of replacing the solder paste.

How to use solder paste

When solder paste is used in mass PCB assembly as well as prototype PCB assembly there are a number of stages that are undertaken. First solder paste is applied to the printed circuit boards. The solder paste is only applied to the areas where solder is required. This is achieved using a solder paste stencil that only allows the solder paste through in certain areas.

There are many ways of achieving this, but typically a stencil is placed over the board, and the paste is applied though this, ensuring that the required amount is applied - too little and the joints will have sufficient solder - too much and the joints will be too large and there may be the possibility of poor joints and even shorts between adjacent pads, etc.

Once the solder paste has been applied to the printed circuit board, it is then passed into the pick and place machine where the components are added. The solder paste has sufficient tension that it holds the components in place. However care should be taken not to knock the board at this stage otherwise the components may move of fall off. Additionally the board should be soldered within a few hours of being placed, otherwise the solder paste may deteriorate.
