  • Yamaha YS24 Pick and Place Machine

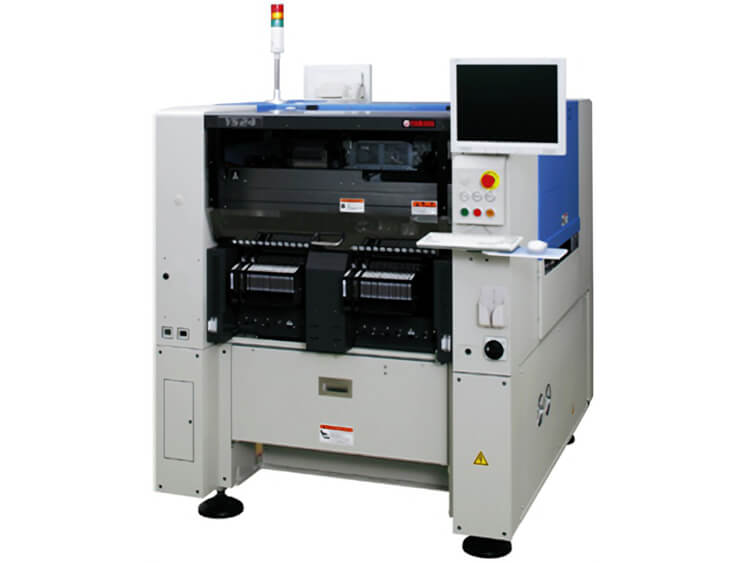

Yamaha YS24 Pick and Place Machine

Yamaha YS24 Pick and Place Machine

  • PCB:700x460mm
  • 72,000CPH
  • 0402 to 32 x 32mm
  • Weight:1700KG
  • Product description: Yamaha YS24 Pick and Place Machine, PCB:700x460mm, Speed:72,000CPH, component range:0402 to 32 x 32mm, Weight:1700KG

Yamaha YS24 Pick and Place Machine


Yamaha YS24 Pick and Place Machine

Yamaha YS24 Specification And Price(Compact Super-High-Speed Modular)

The price range for used ys24 placement machine is

abt USD60000-USD98000(Only for reference).
Yamaha YS24 Series Mounter is divided into Yamaha YS24 and

Yamaha YS24X models,
Yamaha YS24/YS24X supports L700×W460mm ultra large substrates
Yamaha's unique dual placement table, dual rail system.
YS24 production per unit area of 340,000 CPH / square meter.

72,000CPH (0.05sec/CHIP)
Excellent mounting capability
Newly developed "Dual Stage Conveyor" 34kCPH/㎡
Area-productivity, top class in the world
L700 x W460mm  Super large PCB applicable
YAMAHA Dual Lane System applicable
120 Max feeder capacity
0402 to 32 x 32mm
Components applicable

Yamaha YS24X parameters:
Top Mounting Capacity in General Mounter 54,000 CPH (0.067 Seconds/CHIP)
The maximum number of feeders that can be installed (8mm tape trays) is 96
(62 with sATSII)
Supports automatic pallet changer (30 kinds of JEDEC pallets) sATSII
Supportable components, height 0402~45×100mm, H15mm
Dimensions: L1,254×W1,687×H1,445mm; host only,
L1,544 (lengthened conveyor end)×W2,020×H1,545mm
Weight: about 1,700kg (host only)
About 1,890kg


JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha Decan S2 Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
