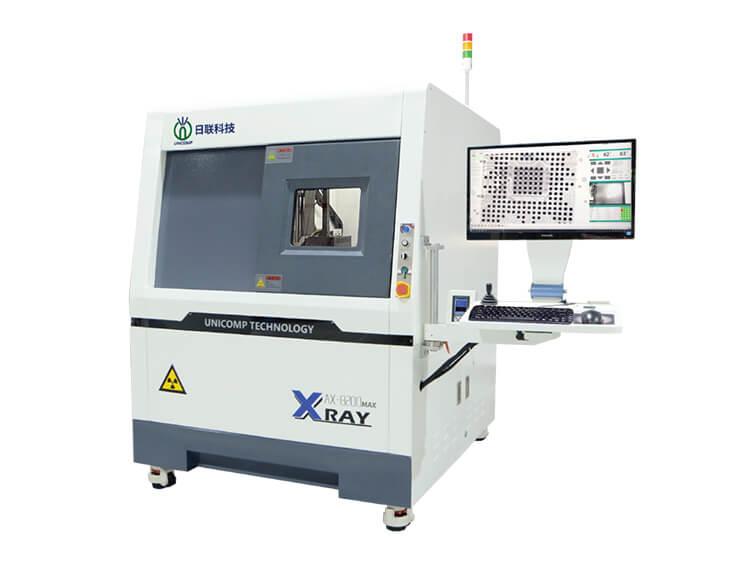

X-Ray Inspection Machine AX-8200 MAX

Max. inspection area: 550 x 550 mm
Manipulator:6-axis
Max. load 10 kg
Dimensions: 1,280 x 1,500 x 1,705 mm
Product description: X-Ray Inspection Machine AX-8200 MAX, X-ray tube type: Sealed Motion control system: Joystick, keypad, mouse & touch panel Max. load 10 kg, Max. inspection area: 550 x 550 mm, Tilt rotation: 60°, Ma
INQUIRY

X-Ray Inspection Machine AX-8200 MAX

Product Specification

Stand-alone X-ray inspection machine
Easily respond to the comprehensive and multi-angle product testing needs of different users
Large inspection table, laser locator for precise location
24″ FHD interactive touch LCD display
Accurate control, CNC programming, automatic positioning
FPD 60° tilting inspection
Fingerprint access management system
Real-time monitoring of radiation
Application: Semiconductor, SMT, DIP, electronic component testing, covering IC, BGA, CSP, flip chip, automotive parts, aluminum die-casting molds, LEDs, batteries, photovoltaic industries & special industries

System Summary
Footprint	1280(W)×1500(D)×1700(H)mm
Machine Weight	1400 kg
Power Supply	AC 110/220V, 50/60Hz
Plywood Packing Size	1750(W)×1550(D)×2000(H)mm
Packing Weight	1500 kg
Power Consumption	2.0 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	600X
Software
Auto-measuring	BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools	Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display	Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight	610*610mm / 10kg
Max. Inspection Area	550*550mm
Oblique Views	Max. 60°
Manipulator	6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor	24’’ FHD Interactive Touch LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	4GB
CPU model	Intel i7 Processor
Other Features
Door Open	Electric Sliding
X-Ray Safety	<1μSv/h (Meets All International Standards)
Authority Management	Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation	Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor

* Specifications are subject to change without notice, All trademarks are the property of the system maker.

Keywords:

SMT AOI Machine, Offline AOI Machine, Inline AOI Machine, SMT X Ray Machine, SMT SPI Machine, 3D SPI Machine, 3D AOI Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
