  • UV Laser Marking Machine LM-102

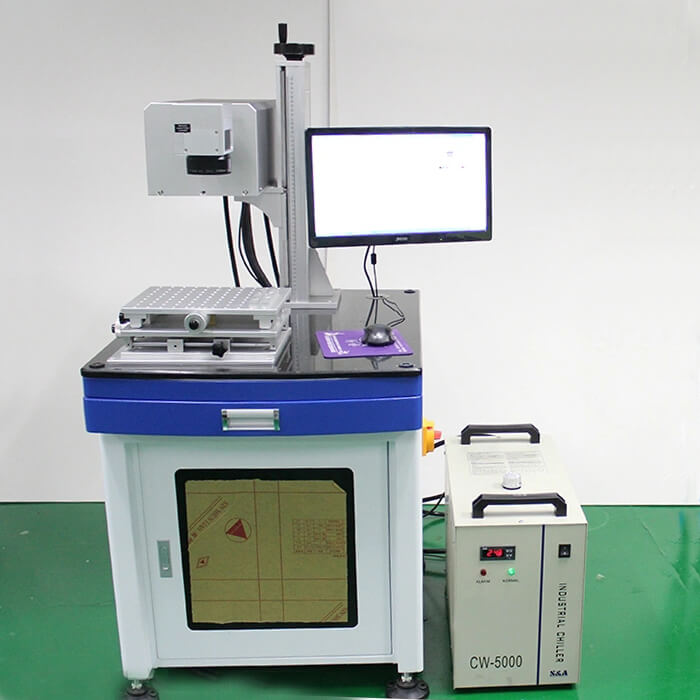

UV Laser Marking Machine LM-102

UV Laser Marking Machine LM-102

  • Power 3W/5W
  • Optical maser wavelength 355nm
  • Marking range 150mm×150mm
  • Laser module life 20000 h
  • Product description: UV Laser Marking Machine for Glass and Ceramics LM-102, Power 3W/5W, Optical maser wavelength 355nm, Marking range 150mm×150mm, Laser module life 20000 h
  • INQUIRY

UV Laser Marking Machine LM-102

Product Introduce:


UV Laser Marking Machine  LM-102

LM-102 UV laser marking machine adopts ultraviolet laser and the development of 355nm, high beam quality, the spot is very small, can achieve ultra fine marking; High precision and fine spot ensure the result of marking is perfect; Playing standard process of non - contact, marking a permanent effect; High efficiency; Fast marking speed, stable performance, small volume, low power consumption, which is more suitable for the thermal radiation response of material processing; It can be matched with the production line, automatic feeding, automatic feeding; Also suitable for marking in the vast majority of metal and non metal materials.

LM-102 UV laser marking machine mainly used in ultra precision machining of the high-end market, 3C industry, automobile industry, medical equipment, electronic components, electrical products, IT industry, hardware products, precision instruments, gift accessories, high and low voltage electrical apparatus, cosmetics, medicines, bottles and other polymer materials surface video marking, effec
t fine, mark cleaning firm, superior ink printing and no pollution; Flexible PCB plate marking, scribing; Microporous silicon wafers, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, surface coating of metal marking, plastic buttons, electronic components, gifts, com Materials, building materials etc.

Industry application
Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace components, all kinds of auto parts, household appliances, hardware tools, dies, wire and cable, food packaging, jewelry, tobacco, and many fields such as military things graphics and text markup, mass production line work.

Power

3W/5W

Optical maser wavelength

355nm

Optical quality

M2<=1.3

Pulse stability

< 2%

Marking type

Dynamic/static marking

Marking range

150mm×150mm

Matching range

50mm×50mm~300mm×300mm

Minimum linewidth

0.01mm

Marking speed

12000mm/s

Repeated accuracy

±0.0025mm

Cooling type

Water

Operating ambient temperature

15ºC-20ºC

Power demand

220V/uniphase/50HZ/<10A

Laser module life

20000 h
