  • SinicTek 3D In line SPI Ultra

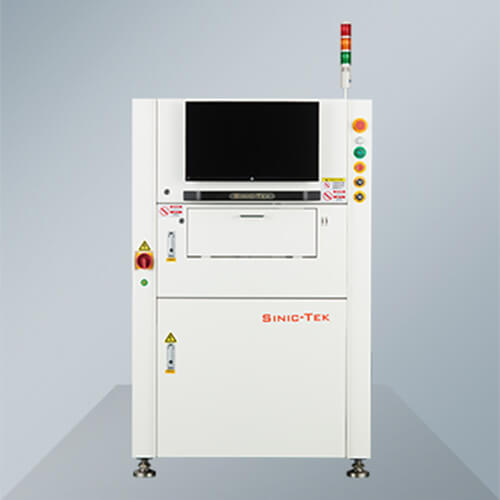

SinicTek 3D In line SPI Ultra

SinicTek 3D In line SPI Ultra

  • 3D SPI
  • PCB size:510 x505 mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: SinicTek 3D In line SPI Ultra,PCB size:510 x505 mm
  • INQUIRY

SinicTek 3D In line SPI Ultra

Specifications:

TECHNICAL PARAMETERS:

Programmable phase contour modulation measurement techniques.

Defect Inspection:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest component size: 008004.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height:≤1um 4 Sigma;volume/acreage<1%4 Sigma.

Maximum Loading PCB Size(X*Y): 480x490mm.

Ultra-high frames and high precision industrial camera.

Linear encoder.

Professional of GPU image processing.

Inspection Speed: 0.35 SEC/FOV.

Fiducial mark Detection Time: 0.3sec/piece.

Maximum inspection height:±450um ±1200umOption.

High precision industrial camera with high frame count.

RGB Tune patented technology.

D-lighting patented technology.

Dynamic and static warpage compensation.

Barcode function with traceability.

Badmark transfer function of placement machine.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.

Keywords:

SMT AOI MachineOffline AOI MachineInline AOI MachineSMT X Ray Machine, SMT SPI Machine3D SPI Machine3D AOI MachineSMT AOI SPI Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, includingSMT reflow oven, wave soldering machine, Pick and place machine, Solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT Spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: [email protected]

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
