  • SinicTek 3D In line SPI InSPIre-686DL

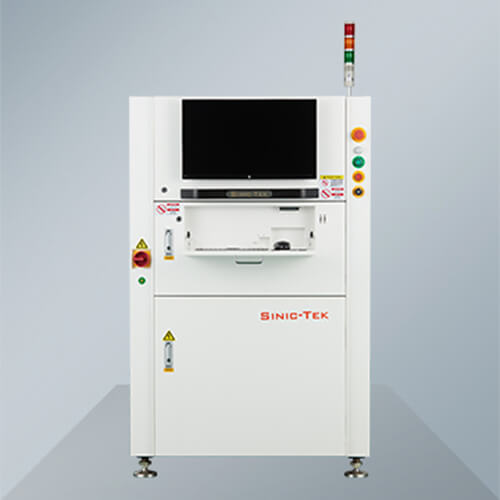

SinicTek 3D In line SPI InSPIre-686DL

SinicTek 3D In line SPI InSPIre-686DL

  • 3D SPI
  • PCB size:450 x350 mm
  • Dimension:​850x1430x1500mm
  • weight:850KG
  • Product description: SinicTek 3D In line SPI InSPIre-686DL, PCB size:450 x350 mm
  • INQUIRY

SinicTek 3D In line SPI InSPIre-686DL

Specifications:

TECHNICAL PARAMETERS:

Inspection Principle: Programmable phase contour modulation measurement techniques(PSLM PMP)

Inspection type:Volume, area, height, XY offset, shape, etc.

Defect Types:shift, excessive solder, insufficient solder, offset, deformed shape, etc.

Smallest componet: 01005.

Accuracy: XY=10 um,Height = 0.37 um.

Repeatability: height:≤1um 4 Sigma;volume/acreage<1%4 Sigma.

Maximum Loading PCB Size(X*Y):630x550mm.

Inspection Speed: 0.35 SEC/FOV.

Fiducial Detection Time: 0.3sec/piece.

Maximum inspection height:±450um±1200umOption.

RGB Tune patented technology.

D-lighting patented technology.

Dynamic and static warpage compensation.

Barcode function with traceability.

Closed loop to printers.

Badmark transfer function to mounters.

Access IMS system functions.

Operating System Support: Windows 7 Professional (64 bit).

Five-minute programming, one-click operation.

SPC process control.

Keywords:


SMT AOI MachineI, PCB quality inspection AOI, China AOI Machine, AOI manufacturer, SMT SPI manufacturer, SMT AOI supplier, 3D SPI Machine .

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, includingSMT reflow oven, wave soldering machine, Pick and place machine, Solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT Spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: [email protected]

FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
