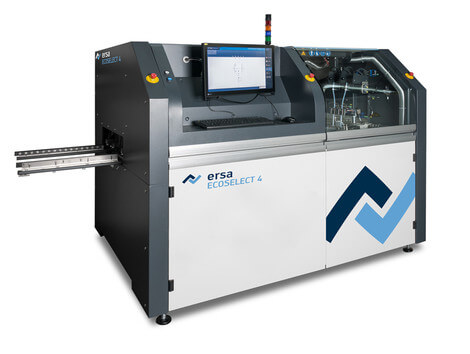

Selective Soldering Machine ERSA ECOSELECT 4

Products description



  • Flexibly integrable soldering system: inline or batch operation
  • VERSAFLOW 4 technology
  • PCB size 508 x 508 mm
  • Roller conveyor
  • Up to two spray heads and flux tanks
  • Powerconvection
  • y/z variable dual solder pots
  • Automatic nozzle activation
  • Upgrade with independent flux module to a full inline machine
  • Award-winning ERSASOFT 5 software
  • VERSACAM – solder wave height measurement “on the fly”

Selective Soldering Machine ERSA ECOSELECT 4

The ECOSELECT 4 is Ersa’s newest selective soldering system. It is a compact system that is perfectly suited for small up to medium-sized batches where flexibility is essential. The ECOSELECT 4 features machine technology of the latest VERSAFLOW generation. Its conveyor system is a high-quality roller conveyor for a max. PCB size of 508 x 508 mm. The ECOSELECT 4 can be used inline or in batch operation. Another machine highlight is the new power convection heating, for example, which provides an optimal and homogenous warm-up also of complex boards. Like all Ersa selective soldering systems the ECOSELECT 4 is equipped with a programmable precision spray fluxer with integrated spray control for precise and economical flux application in single spots or in tracks. A second spray head is available as an option.
Innovative machine operation with ERSASOFT 5
The new dual solder pot system of the VERSAFLOW 4 is also available for the ECOSELECT 4. Both mini wave pots can be moved flexibly in Y/Z direction. Thus, the machine operator can install solder nozzles with different diameters in order to quickly solder connectors using a nozzle with large diameter and using a very slim nozzle shape for joints which are difficult to reach. The innovative and user-friendly ERSASOFT 5 software renders machine operation even more intuitive. Through individual user interfaces, each group of operators receives, at one glance, the data and information it requires. A further software highlight is the PiP technology (picture in picture) combined with a process monitoring camera.

Dimensions
Length from 2,000 mm
Width approx. 1,800 mm
Height approx. 1,700 mm
Conveyor system
Roller conveyor
PCB width: 50-508 mm
PCB length: 127-508 mm
Maximum PCB top side clearance: 120 mm
Maximumg PCB bottom side clearance: 60 mm
Maximum PCB weight: 15 kg
Media supply
Nitrogen
Pneumatic system
Electric supply
Extracted air
Flux module
Drop-Jet in different sizes
Preheat module
IR heating, convection (option), powerconvection (option)
Solder module
Electromagnetic solder pot
Mini-wave 13 kg up to 2 pots


1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

smt wave soldering machine,smt soldering oven, THT soldering machine, SMT soldering machine, smt assembly line dual wave soldering machine, PCB soldering machine, SMT assembly machine, PCB soldering dual wave machine, LED wave soldering machine, LED PCB wave soldering machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
