Products description:

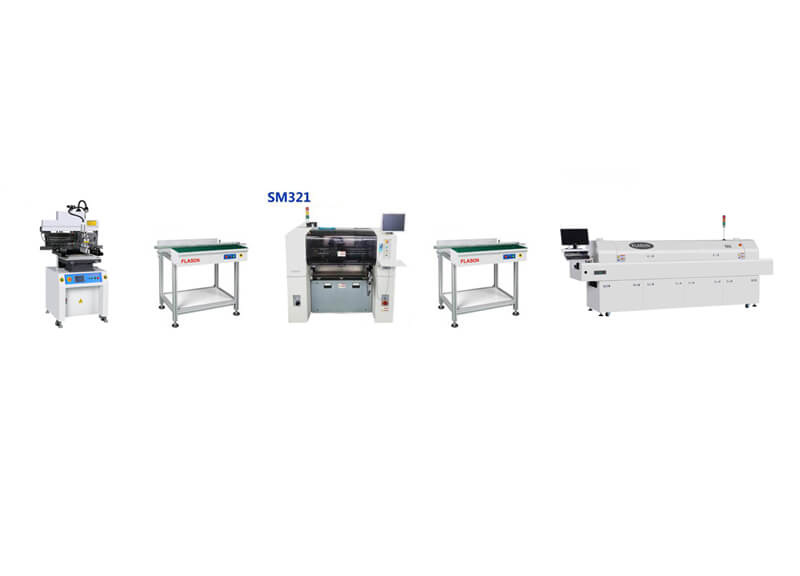

Samsung SMT Assembly line, Samsung SM321 speed is 21000CPH, Suitable for LED light, LED strip, Consumer products like mouse, Keyboard and other home electronic proudcts production. Whole production line cost around 20000USD, Suitable for start up SMT LED PCB assembly business. Contact us and we will offer you a suitable semi auto SMT assembly line solutions for start up SMT factory.

Specifications of each Machine:

1.Samsung SM321 chip mounter,As a ten years old pick and place machine, Samsung SM321 still working fine with good quality, very nice price and it is suitable for start up low cost SMT solutions..


Chip theoretical speed of 21,000CPH
Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size L1,650 * D1,680 * H1,530
Power 4.7KVA
Equipment weight 1800kg
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min

Samsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system, Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling, For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders, With front and back for the operation of the LCD display, automatic mouth change device.

2.8 zones reflow oven,it's enough for LED production, if you need double side PCB production use a Chain conveyor is OK. and second hand price is quite good and it's suitable for start up low cost SMT solutions..


Model

Flason A8

Heating System

Number of heating zones

Top 8/Bottom 8

Heating passage

2800MM

Heating style

Top: hot air; bottom: IR

Cooling Style

Force air

Conveyor System

Max. Width of PCB

350mm

Mesh belt width

400mm

Conveyor Direction

LR(or RL)

Process Height

880±20mm

Conveyor type

Mesh

Conveyor speed

0-1000mm/min

Fixed Track

Front track fixed(option: rear track fixed)

Control system

Power supply

5 line 3 phase 380V 50/60Hz

Total consumption

38kw

Startup consumption

34kw

Steady consumption

4KW

Ramp Up time

About 20 mins

Temp. set-point range

Room temperature-300

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1

Temp. deviation on PCB

±2

Data storage

Process Data and status storage(80GB)(machine with PC)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (Overtemp/low temp.)

Board dropped alarm

Tower light: Amber-warning, Green-normal, Red-abnormal

General

Dimension(L*W*H)

4200×700×1320mm

Weight

800KG

Color

Computer grey

3.Semi Automatic smt stencil printer, it's good for small and middle size PCB printing, Even long LED strip PCB also can use this semi auto smt printer to do printing, new machine is not expensive, around 3000USD, second hand is more cheap is suitable for start up low cost SMT solutions.


Main Features of SMT Stencil Printer Machine:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing,  and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for  single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient      fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-  screen life.

10.Printing speed display, can be adjusted.

Specifications
SMT Stencil Printer Machine
Working area
300*400-300*400mm(300*600mm,300*1200mm)
Frame size
370*470mm,420*520mm,550*650mm,1500*650mm
PCB thickness
0.2-4.0mm
Voltage
Single phase 220V,50/60Hz,100W
Accuracy
+/- 0.05mm
Machine size
L1750*W1100*Hl650mm
Gross weight
450kg
