  • Hanwha SM482 Plus Pick and Place Machine

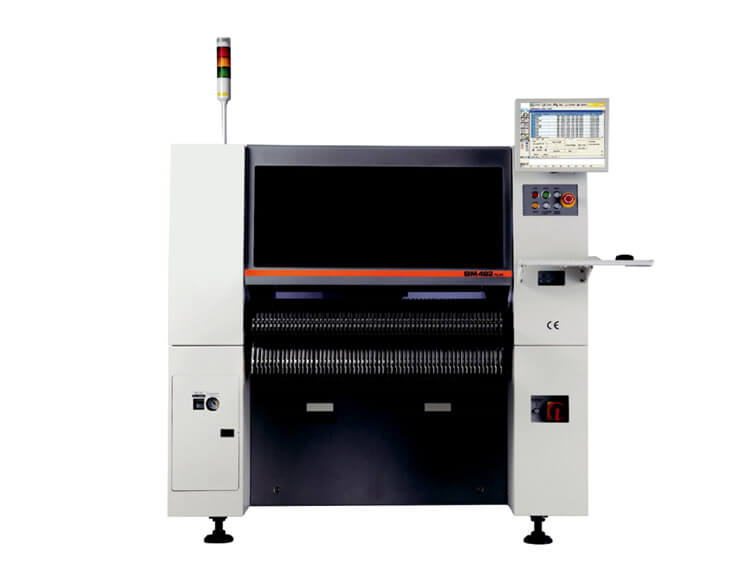

Hanwha SM482 Plus Pick and Place Machine

Hanwha SM482 Plus Pick and Place Machine

  • Speed : 30,000CPH (Optimum)
  • PCB : Max. 460(L) x400(W)
  • Structure : 1 Gantry x 6 Spindles/Head
  • Component range: 0402 ~ 55mm(H 15mm)
  • Product description: Hanwha SM482 Plus Pick and Place Machine, Speed : 30,000CPH (Optimum), PCB : Max. 460(L) x400(W), Structure : 1 Gantry x 6 Spindles/Head, Component range: 0402 ~ 55mm(H 15mm), weight:1600KG.
  • INQUIRY

Hanwha SM482 Plus Pick and Place Machine

Specifications:



Hanwha SM482 Plus Pick and Place Machine

1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

Top Advantage:
1. Advanced High Speed Flexible Mounter.
2. High Speed, High Precision and Electrically Driven Feeder.

3. New Vacuum System and Optimized Pickup/ Placement Motion.

Specifications

Hanwha SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μm@μ±3σ

±40μm@μ±3σ

±40μm@μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600


Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine,SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
