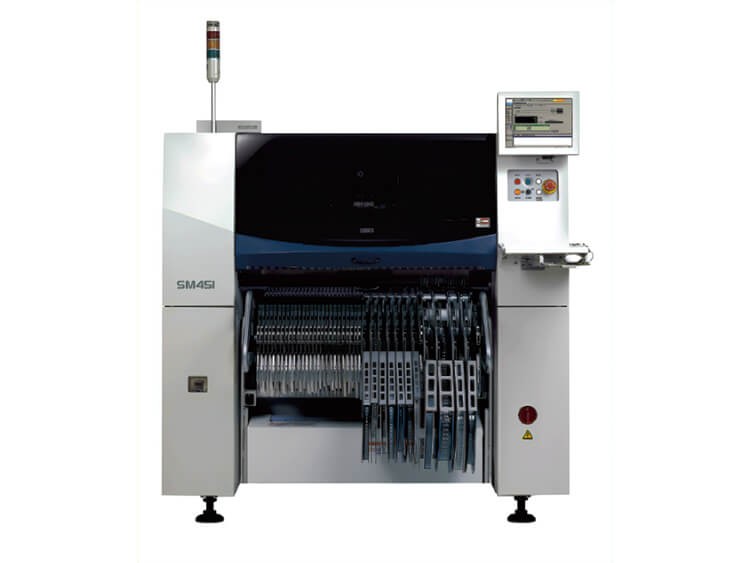

Samsung SM451 Pick and Place Machine

Description:

Samsung SM451 Pick and Place Machine

The SM451 is a high precision multi-functional placement system equipped with high precision force

control heads.  Based on the SM421 platform it's highly reliable. Linear scale have been

added to the X-Y axis to improve placement accuracy.

Basically, it can be applied to various odd-shaped parts from 01005 fine chips to 57 x 42 mm IC parts,

long connectors, bare chips and PIP insert parts. In addition, it also allows placement of special parts

by providing gripper nozzles and supports the functions for part height adjustment of up to 28 mm,

applicability to POP, lead lift-off check, and rear side reflection recognition.

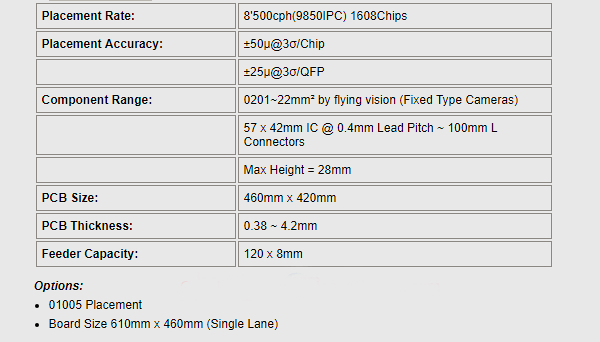

Features:

Gripper Nozzles for Connectors
Co-Polarity Sensor for lifted leads
Force Control Z-Axis
Through Hole Component Placement
Connector Placement
Large PCB Size of 460mm x 420mmGripper nozzle for samsung SM451 Odd Form Placement Machine
0201 component recognition as standard
120 x 8mm Feeder Capacity
High Accuracy ±25µ@3σ/QFP, ±50µ@3σ/Chip
Small Footprint of just 1650mm x 1690mm x 1485mm
4.7KVA Max Power
