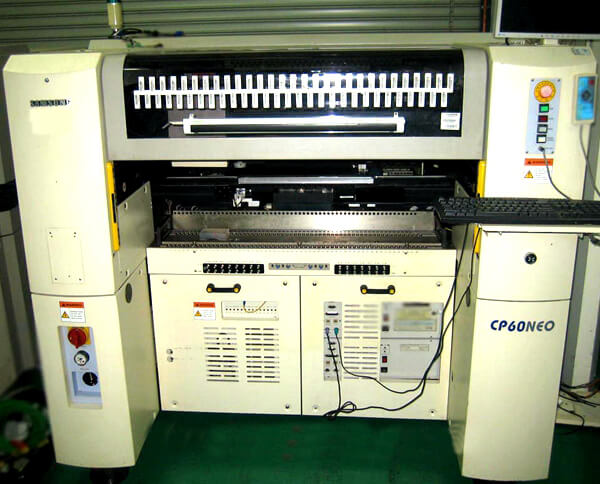

Samsung CP60 Pick and Place Machine

Samsung CP60 Pick and Place Machine

  • PCB maximum size: 500 * 320 * 4.2
  • Mounting Speed: 30000 CPH
  • Dual rail transfer system
  • Weight: about 2100KG
  • Product description: Samsung CP60 Pick and Place Machine, PCB maximum size: 500 * 320 * 4.2, Mounting Speed: 30000 CPH, Dual rail transfer system, Weight: about 2100KG

Samsung CP60 Pick and Place Machine


Samsung CP60 Pick and Place Machine

Faster 1 double cantilever - synchronous servo control system, two completely independently

driven cantilevers, 12 placement heads. 2. The Linear Scanning Optical System (LSO),
which has been successfully applied in CP60, improves the scanning speed and the ability
to handle micro-elements. 3. Dual rail transfer system, reducing the PCB transfer time.

More flexibility 1. Wide range of components, high-speed mounting from 0603 (0201) to

24mm IC, BGA and QFP.2. Effective feeder, can load a total of 116 8mm feeders to
reduce the refueling time, Improve equipment utilization.

Samsung CP60HP parameters
Alignment: Line Scan Optics
Mounting Speed: 0.1 sec / CHIP IPC9850 30000 CPH IC 0.6 SEC / QFP100
Mounting accuracy: ± 0.08 (3 sigma), 0603
Component Range: 0603 (0201) -24mm QFP, BGA Minimum

Pin Distance 0.65mm (Pin Pitch), 1.0mm (Ball Pitch)

PCB maximum size: 500 * 320 * 4.2
Number of feeders: 116 (8mm)
Dimensions: 1,900 * 1,870,1,470
Energy consumption: 3.4KVA
Weight: about 2100KG
Manufacturer: SAMSUNG
Model: CP-60 NEO
Equipment Details:
Pick and place systems Left to right flow Front fix (Qty 2) 8x2mm feeders
