  • Samsung CP45FV NEO Pick and Place Machine

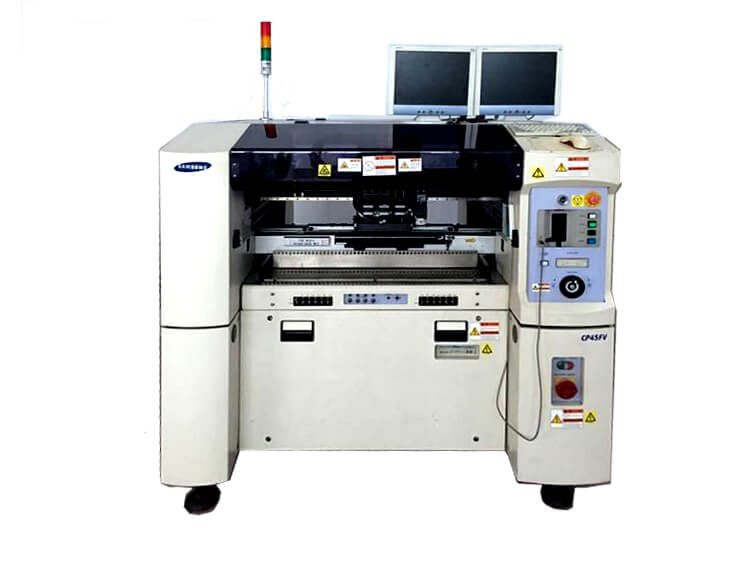

Samsung CP45FV NEO Pick and Place Machine

Samsung CP45FV NEO Pick and Place Machine

  • Fly Vision + Stage Vision
  • Mounting Speed: 14900CPH
  • Mounting accuracy 0603 (0201) Chip ± 0.08mm
  • PCB board size 460X400X4.2
  • Product description: Samsung CP45FV NEO Pick and Place Machine, Fly Vision + Stage Vision, Mounting Speed: 14900CPH, Mounting accuracy 0603 (0201) Chip ± 0.08mm, PCB board size 460X400X4.2

Samsung CP45FV NEO Pick and Place Machine


Samsung CP45FV-Neo Pick and place machine advantages:
1, simple operation, flexible line change: Samsung's CP and SM series Mounter is recognized by the

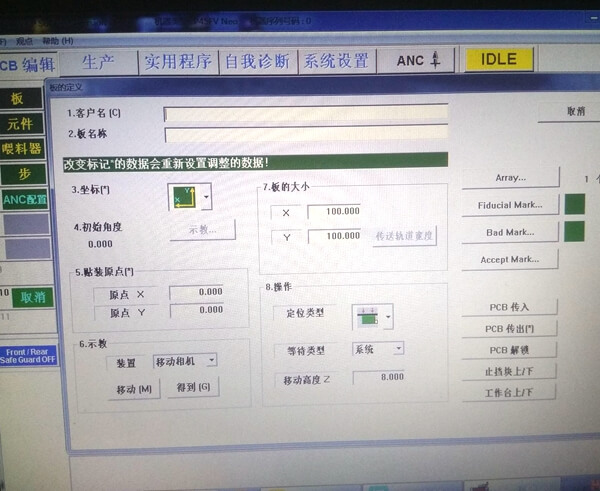

industry's most simple operation of the model, which uses WinXP system, compatible with Gerb files,

off-line programming, specifically in the PCB size , SMT components for a wide range of high precision,

flexible line change.Cost-effective, very suitable for medium and small quantities of more varieties,

the production of complex products.

Project CP45FV NEO
Visual method Vision (Fly Vision + Stage Vision)
Mounting Speed Chip top speed 0.178sec / chip
IPC9580 14900CPH (1608)
IC Flight Camera 0.75sec / QFP64
Fixed camera 1.6sec / QFP256
Mounting accuracy 0603 (0201) Chip ± 0.08mm
1005Chip ~ ± 0.1mm

QFP ± 0.04mm

Component Dimensions Flight Camera 1005 (0402) ~ □ 22mm IC, 0603 (0201) ~ □ 12mm (Option)

Standard Fixed Camera (FOV35) ~ □ 32mm IC (Lead Pitch: 0.4mm)
Special Fixed Camera (FOV20) ~ □ 17mm IC (Lead Pitch: 0.3mm)
Special Fixed Camera (FOV45) ~ □ 42mm IC (Lead Pitch: 0.5mm)
Leading Pitch (QFP) 0.3mm (with FOV20 Vision)
Min. Ball Pitch (BGA) 0.5mm (with FOV20 Vision)
Parts up to 15mm (9mm: with flying vision)
PCB board size 460X400X4.2 ~ 50X30X0.38 / 510X460X4.2 ~ 50X100X0.38 (CP45-L NEO)
