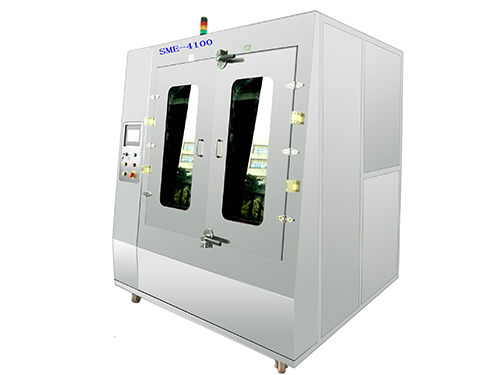

SMT Screen Developing and Stripping Machine SME-4100

SMT Screen Developing and Stripping Machine SME-4100

  • Max Screen Size L1000 x W1000 x H40
  • Solvent tank Min 120L
  • Clean time 1~4min​
  • Machine weight About 500kg
  • Product description: SMT Screen Developing and Stripping Machine SME-4100, Max Screen Size L1000 x W1000 x H40, Solvent tank Min 120L, Clean time 1~4min​, Machine weight About 500kg
  • INQUIRY

SMT Screen Developing and Stripping Machine SME-4100

Product Introduce:


SMT Screen Developing and Stripping Machine SME-4100

Machine Description:
SME-4100 Auto Screen Developing and Striping Machine is used to clean screen after exposure in screen producing process. 2 water spray rods clean the front and rear side of the screen to make the printing graph clear.
SME-4100 also used as Screen Striping Machine to clean photographic coating and ghost image on screen to make it a plain screen and ready to reuse again.
Machine Feature:

1.High quality electrical pump. High pressure water spray and recycle filtering function.
2.Totally SUS 304  structure, Strong Acid and Alkali corrosion resistance,  10 years lifespan.
3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure。
4.Standard equipped water level control mechanism, automatically add water when water is not enough..
5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.
6.Completely closed spray developing process, makes the ground of the workshop clean and day.
7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.
8.It also can be used as auto striping machine after adjusting the water jet pressure and time.
Machine Spec:

Item

SME-4100 SPEC

Max Screen Size

L1000 x W1000 x H40(mm)

Solvent tank

Min 120L

Clean time

1~4min

Dry time

3~5min

Air consumption

800~1000L/min

Air supply

0.5~0.7Mpa

Air vent size

Φ125 × H30 (mm)

Filter system

2mm water inlet filter

Developing /Striping

Spray clean + air dry

Power supply

AC380V,50HZ,11KW

Machine size

L2000 x W1500 x H 2150(mm)

Machine weight

About 500kg

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
