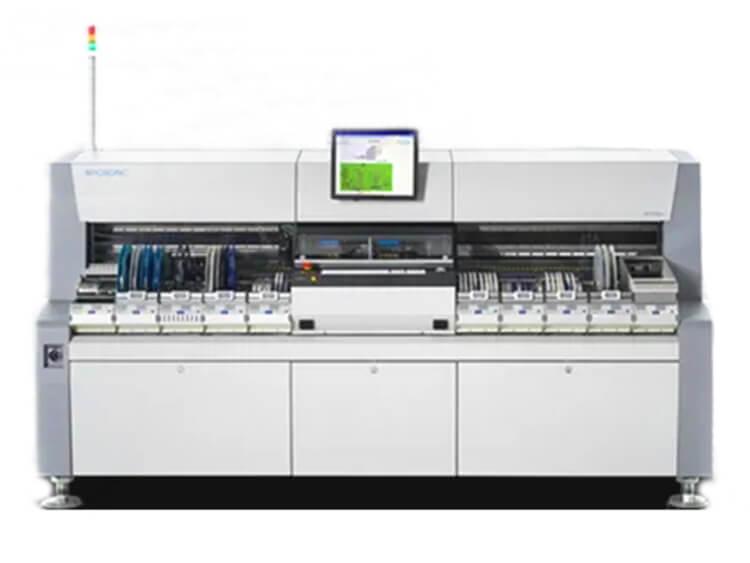

SMT Pick and Place Machine Mycronic MY300HX

SMT Pick and Place Machine Mycronic MY300HX

  • Maximum board size: 460 x 510 mm
  • Speed: 45,000 CPH
  • Weight: 1500 kg
  • Dimension: 2082x1632x1438mm
  • Product description: SMT Pick and Place Machine Mycronic MY300HX, Maximum board size: 460 x 510 mm, Speed: 45,000 CPH, Weight: 1500 kg, Dimension: 2082x1632x1438mm

SMT Pick and Place Machine Mycronic MY300HX


SMT Pick and Place Machine Mycronic MY300HX

High-speedHigh-speed chip mounter, with up to 45,000 CPH
High accuracyHigh accuracy and repeatability for fine pitch placement
Agilis feeder technologyAgilis feeder technology featuring up to 160 feeder positions

Master complexity. Grow your business.
Populate more boards. Not more floor space.
Get more jobs done in less space with Mycronic's pick-and-place machines. Thanks to the machines’ compact design, up to 224 intelligent feeders can be accommodated within a surprisingly small footprint.
Switch effortlessly from full volume to batch size one. Handle a wider range of components with uncompromising production quality, total stock accuracy and complete traceability down to individual PCB serial number.
The MY300 delivers SMT pick-and-place at next level precision and flexibility in a fast, small and smart format.
Key benefits:
Up to 160 feeder positions
Top speed of 45,000 CPH
Chip placement from 01005 package size
Placement of SO28, SOT223, SOJ20, PLCC32, MELF, SOD, TSOP with 0.4 x 0.2 mm minimum dimensions

Electrical verification of resistors, capacitors, diodes and transistors (optional)

Maximum board size

460 x 510 mm

Maximum board size with ML adaptor

419 x 443 mm

Minimum board size

70 x 50 mm

Board thickness range

0.4 – 6.0 mm

Board edge clearance top and bottom

3.2 mm (0.13”)

Top side clearance (max)

15 mm (0.59”)

Bottom side clearance (max)

32 mm (1.25”)

Rated speed

40 000 CPH

Maximum board weight

4 kg (8.8 lbs)

IPC 9850 chip tact time

0.103 s

IPC 9850 chip repeatability

30 μm, 1.8° (6) 45 μm, 1.8°

IPC 9850 chip accuracy

50 μm, 2.6° (6) 75 μm, 2.6°

IPC 9850 fine pitch repeatability

21 μm, 0.05°

IPC 9850 fine pitch accuracy

35 μm, 0.09°

Power requirements

Three phase AC 6.6 kVA (3 x 2.2 kVA)

Power consumption

1.5 kW (average)


3 x 200, 210, 220, 230, 240, 250 +/- 10%, Y or Delta

Air supply

No air required


70 dBA

Air temperature

+18 to +35¦°C (65 to 95¦°F)

Air humidity

<¦95% RH non condensing

Weight MY300HX-9

1,500 kg (3,300 lbs)

Weight MY300HX-13

1,600 kg (3,500 lbs)

Dimension: MY300HX-9


Dimension: MY300HX-13
