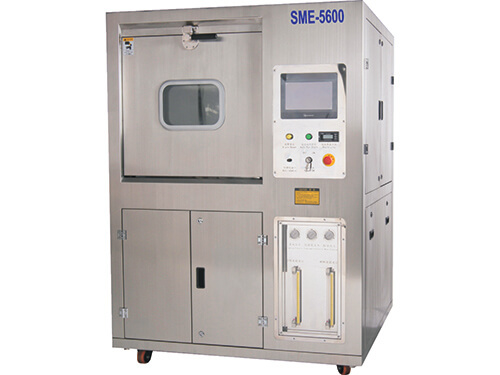

SMT PCBA Offline Cleaning Machine SME-5600

SMT PCBA Offline Cleaning Machine SME-5600

  • Cleaning basket size L610 x W560 x H100 (mm) x2 layers
  • Spray tank capacity 17L
  • Clean time 5~20min
  • Machine weight 460KG
  • Product description: SMT PCBA Offline Cleaning Machine SME-5600, Cleaning basket size L610 x W560 x H100 (mm) x2 layers, Spray tank capacity 17L, Clean time 5~20min, Machine weight 460KG
  • INQUIRY

SMT PCBA Offline Cleaning Machine SME-5600

Product Introduce:


SMT PCBA Offline Cleaning Machine SME-5600

Machine Description:
SME-5600 is an off-line, compact, energy-saving and environmental protection, batch cleaning, high-end PCBA cleaning machine. SME-5600 can automatically complete the cleaning, rinsing, drying process in the clean chamber by just push one start key.
SME-5600 PCBA cleaning machine can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations.
Mainly used in aviation, aerospace, medical, new energy, automotive electronics, meters industries, especially suitable for small amount, multiple types PCBA cleaning.
Machine Features:
1.Through clean rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations on PCBA.
2.2-layers cleaning basket: 610mm(L) ×560mm(W) × 100mm(H) x2 layers.
3.State of the process is visible through a large observation window.
4.Clean detergent heat system heat cleaning detergent to a certain temp, raise cleaning efficiency and reduce clean time.
5.Easy operation interface, quick setting clean parameters. Different passwords can be set.
6.Inner filter makes detergent used repeated. Real-time measure DI water resistivity and monitoring cleaning effect. Resistivity range is 0~18 MΩ.
7.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
8.High standard cleanliness, ionic contamination completely meets the requirement of IIPC-610D I class.
9.Totally SUS304 structure, very firm and attractive.

Machine Spec:

Item

SME-5600 spec

Cleaning basket size

L610 x W560 x H100 (mm) x2 layers

Spray tank capacity

17L

Concentrate capacity

32L

Dilution capacity

60L

Clean time

5~20min

Rinse time

1~2min/times

Rinse times

1~99times

Hot air dry time

10~30min

Detergent heat temp

Room temp~60℃

PCB hot air day temp

Room temp~99℃

Resistivity range

0~18MΩ

Detergent filter

0.22um

Rinse water pipe out filter

0.22um

Air filter

10um

DI water supply

30~65L/Min

DI water pressure

0.2~0.4Mpa

Vent size

Φ76xH50(mm)

Power/Air supply

AC380V/50A/50HZ,30KW,0.5Mpa

Machine size

L1300 x W1200 x H1850(mm)

Machine weight

460KG
