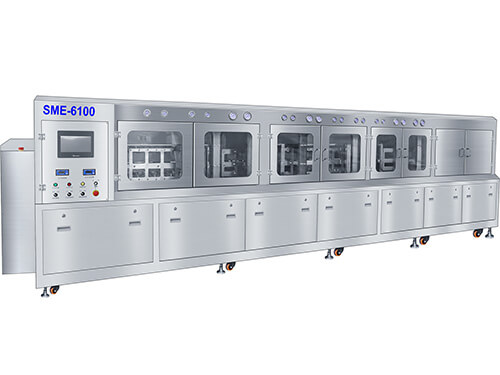

SMT PCBA In-line DI water Cleaning Machine SME-6100

SMT PCBA In-line DI water Cleaning Machine SME-6100

  • Conveyor net width 600mm
  • Conveyor net speed 100~1500mm/min
  • PCB width 60~600mm
  • Clean tank 300L
  • Product description: SMT PCBA In-line DI water Cleaning Machine SME-6100, Conveyor net width 600mm, Conveyor net speed 100~1500mm/min, PCB width 60~600mm, Clean tank 300L, Machine weight: 1500KG
  • INQUIRY

SMT PCBA In-line DI water Cleaning Machine SME-6100

Product Introduce:


SMT PCBA In-line DI water Cleaning Machine SME-6100

Machine Description:
SME-6100 is a high-end in line PCBA DI water cleaning machine. Only use Diwater to clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.It is mainly use on aviation, aerospace, medical, new energy, automotive electronics, digital meters
industries. Machine Features:
1.Big quantity PCBA in line DI water cleaning system.
2.Super cleaning result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.
3.Multi-areas DI water cleaning process, Pre-clean, clean, final spray clean, air knives shear, hot air dry are completely according to settings.
4.Fresh DI water supply automatically, post-area DI water overflow to the previous-area.
5.Up/down DI water spray pressure can be adjusted, water pressure shown on meters.
6.DI water spray pressure can reach to 80 PSI, it can permeate to PCBA bottom gap and make thoroughly clean.
7.Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.
8.PCB flat net conveyor system, stable and no deviation.
9.PC control system, Chinese/English operation interface, program and parameters setting, load, save and change are very convenient.
10.Total SUS304 structure, Acid and Alkali corrosion resistance.
Machine Spec:

Item

SME-6100 Spec

Conveyor net width

600mm

Conveyor net speed

100~1500mm/min, suggest 300~400mm/min

Conveyor height

900±50mm

PCB conveyor direction

From Left to Right

PCB width

60~600mm

PCB clean height

0~100mm

Clean tank

300L

Rinse tank

300L

DI water consumption

1~1.5m³/H

Exhausted air

12m³/H

Control

PC+PLC

Power/air supply

380VAC3P,50/60HZ70KW/0.5Mpa

Resistivity range

0~18MΩ

Machine size

4350Lx1530WX1620(H) mm

Machine weight

1500KG
