  • SMT Fixture Cleaning Machine SME-5200

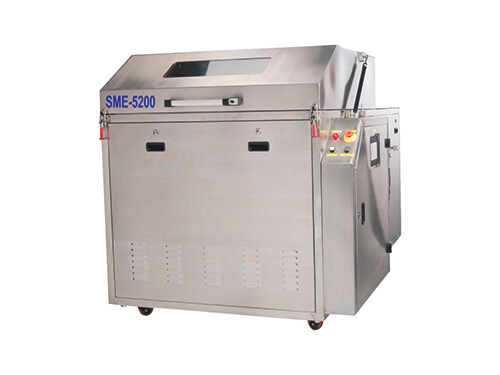

SMT Fixture Cleaning Machine SME-5200

SMT Fixture Cleaning Machine SME-5200

  • Cleaning basket size Φ1000mm x H 200mm
  • Clean tank capacity 80L
  • Dry time 10~20Min
  • Machine weight 500KG
  • Product description: SMT Fixture Cleaning Machine SME-5200, Cleaning basket size Φ1000mm x H 200mm, Clean tank capacity 80L, Dry time 10~20Min, Machine weight 500KG
  • INQUIRY

SMT Fixture Cleaning Machine SME-5200

Product Introduce:


SMT Fixture Cleaning Machine SME-5200

Machine Description:

SME-5200 Fixture Cleaning Machine is used to clean grease, flux, dusts on the surface of all kinds of SMT fixtures,tray, reflow oven cooler and filter, wave-soldering oven claw, chains, and nets…etc.
SME-5200 is made up of wash unit, rinse unit, dry unit, rotation cleaning basket unit and control unit. Put the dirt SMT fixtures on to the cleaning basket, setting the cleaning parameters, the machine will automatically complete wash, rinse and dry process by just pushing start key. The fixtures after cleaning is very clean and dry, ready to use at any time.

Machine Features:
1.Total SUS 304 structure, resist Acid and Alkali corrosion, firm and attractive.
2.1 meter diameter big cleaning round basket, can clean 20~40 pcs fixtures at one time.
3.Clean liquid spray from 3 spray rods on upper/lower and front side, cleaning basket rotates during cleaning.
4.Clean liquid pressure up to 6kg/cm2, make it throughly clean of whole fixture.
5.PLC program control, Touch-panel operation,cleaning parameters can be set and change conveniently.
6.Easy One-button operation, high pressure clean+ rinse+ hot air dry, all process complete in a cycle automatically.
7.Clean liquid and water heat and temperature keeping function.
8.Closed-loop clean and rinse, clean detergent and rinse water are cycling filtered and reused in the machine.
9.Standard equipped solution and water auto fill in and discharge function.
10.The fixtures are clean and dry after cleaning, standby and ready for use at any time.

Machine Spec:

Item

SME-5200 Spec

Cleaning basket size

Φ1000mm x H 200mm. Special size option

Spray unit

Upper/lower/front side,720°all-around spray

3-level filter system

1mm /50um/20um filters

Clean tank capacity

80L

Rinse tank capacity

80L

Clean spray pressure

5~6 kg/cm2

Clean time

5~15 Min

Rinse time

1~3 Min

Dry time

10~20Min

Clean detergent heat temp

Room temp~80℃

Rinse water heat temp

Room temp~80℃

Hot air heat temp

Room temp~90℃

Clean pump power

2.2KW

Clean detergent power

9KW

Hot air heat power

9KW

Air blower power

4.0KW

Air supply

0.5~0.7Mpa

Power supply

3 P,AC 380V,50/60HZ,33KW

Machine size

L1380 x W2100 x H 1400 (mm)

Machine weight

500KG
