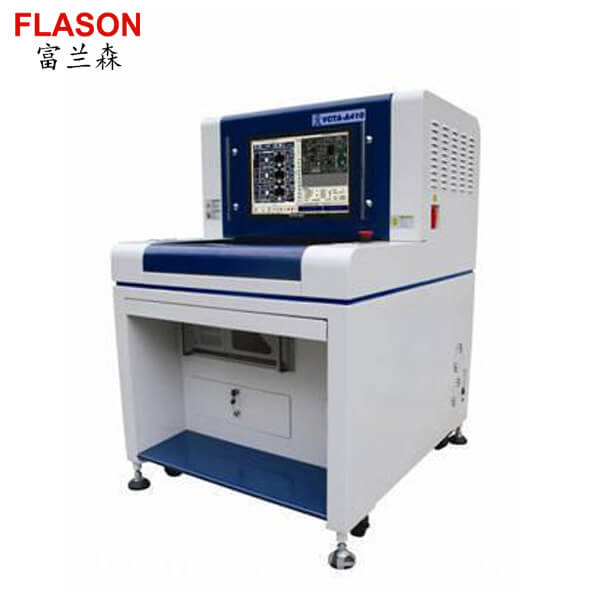

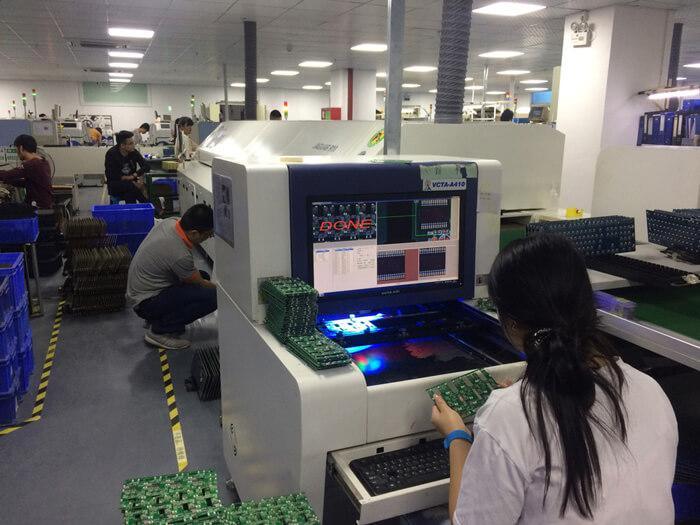

  • SMT Off line AOI Inspection machine
SMT Off line AOI Inspection machine

SMT Off line AOI Inspection machine

  • Dimension:940*950*1280 mm
  • PCB width:0-350(mm)
  • Inspection Component: 0402 chip
  • Weight:Aprox. 450kg
  • Product description: SMT Off line AOI Inspection machine, Dimension:940*950*1280 mm, PCB width:0-350(mm), Inspection Component: 0402 chip, Weight:Aprox. 450kg
  • INQUIRY

SMT Off line AOI Inspection machine

AOI Specification



SMT Off line AOI Inspection machine

Inspection System & Optical System

Inspection Object

Skew / Tombstone / Wrong part / Missing / Overturning / Damaged /
Cold joint / insufficient solder / Excess solder

Inspection Component

0402 chip , IC pin(0.3mm pitch), wave solder

Inspection Method

Full color image statistic analysis, OCP, IC bridge analysis, color linear analysis color non-linear analysis, similarity analysis, black-white ratio analysis, intensity analysis

Camera

Color CCD (1.45MPa Pixels), Resolution 20um, FOV 20*20mm (customized), speed?2000mm²/s

Light Source

RGB Ring Multi-angle LED combination lighting, high brightness, standard CCTV lens, DOV 2mm

Software & Computer

Computer

CPU: Dual-core 2.7G, RAM: DDRIII-2G hard disk : 500G, 22" wide screen LCD

Mechanical System

PCB Thickness

0.3 - 5.0 (PCB Warpage < 5mm)

PCB Width

30-380mm (can be customized)

Driving Method

AC Servo Motor+ball screw rod+linear guide rail

Motion Speed

Max 700mm/s

PCB Clamp

Automatic

Power

AC220V / 50Hz, UPS 1000W

Dimension

940*950*1280 mm

Weight

Aprox. 450kg

Off line AOI Inspection machine Future:

1. HD image, easy for 0402 chip.

2. Full color image statistics analysis

3. Optical character recognition(OCR)

4. IC bridge analysis

5. Color analysis

6. Graphics similarity

7. Black white ratio analysis

8. Intensity analysis

9. Non linear color analysis

10. CAD data input and output

11. MPF technology, fast programming

12. Camera barcode identification(1D&2D)

13. Spare component library

14. Auto double side test

15. Auto skip test

16. SPC

17. Off line inspection system

18. NG Rate<0.01%, Repeat accuracy<3 pcs, False Negative<10PPM, False Positive<5000PPM.
